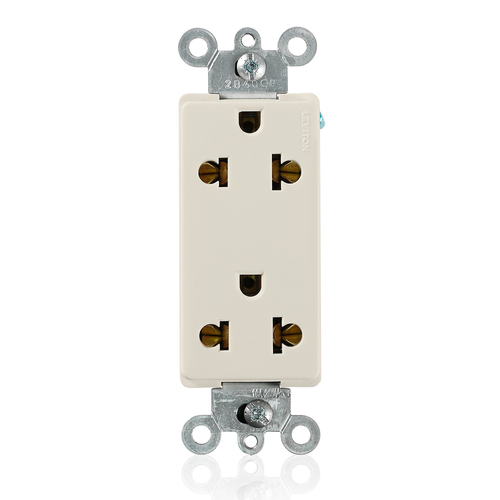

Decora Plus Duplex Receptacle, Straight Blade and Europlug, 15A 125/250V 2P, 3W (Light Almond)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5.11 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Almond
15 Amps
10 years Warranty
Description
–
Features
Specifications
- Leviton has combined the two most popular configurations, a NEMA 5-15 and CEE 7/16 1-15 plug. This two-pin plug is probably the single most widely used international plug, popularly known as the Europlug. The plug is unearthed and has two round, 4 mm pins, which usually converge slightly. It can be inserted into any socket that accepts 4 mm round contacts spaced 19 mm apart. It is described in CEE 7/16 and is also defined in Italian standard CEI 23-5 and Russian standard GOST 7396. The Europlug is used in Class II applications throughout continental Europe (Germany, Austria, Switzerland, Italy, Greece, the Netherlands, Belgium, France, Spain, Portugal, Denmark, Norway, Sweden, Finland, Poland, The Czech Republic, Slovakia, Hungary, Romania, Bulgaria, Lithuania). It is also used in Turkey, the Middle East, and most of Africa and South America (Brazil), as well as the former Soviet republics, and many developing nations. The plug is intended for use with devices that require 2.5 A or less. Because it can be inserted in either direction into the socket, live and neutral are connected at random.
- 5-15R
Specifications
- Wire: 3
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- Voltage: 125/250 VAC
- Product ID: Ratings are permanently marked on device
- Termination: Back or Side Wire
- Face Material: Thermoplastic Nylon
- Line Contacts: Brass Triple-Wipe .031 Thick
- Dielectric Voltage: Withstands 1500 V per UL498
- Clamp Nuts: Zinc Plated Steel
- At Rated Voltage: 1/2 HP
- Body Material: Thermoplastic Nylon
- NEMA: 5-15R
- Grounding Screw: Brass 8-32
- Strap Material: Zinc Plated Steel
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Country of Origin: Mexico
- Current Limiting: Full Rated Current
- Operating Temperature: -40 °C to 60 °C
- Color: Light Almond
- Terminal Accom.: 14-10 AWG
- RoHS Compliant: TRUE
- Flammability: Rated V-2 per UL 94
- Amperage: 15 A
- Pole: 2
- Terminal Screws: Brass 10-32
- Warranty: 10-Year Limited
Specs
–
| Country of Origin: | Mexico |
|---|---|
| Color: | Almond |
| Terminations: | Back Wire Side Wire |
| Amperage: | 15 |
| Poles: | 2 |
| Warranty: | 10 years |
| NEMA Rating: | 5-15R |
