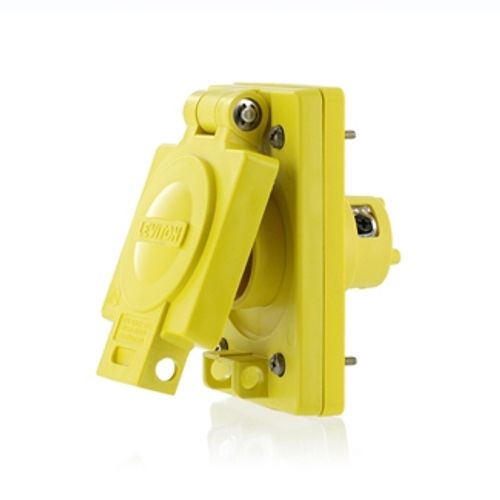

15A, 250V NEMA 6-15, 2-Pole, 3-Wire, Straight Blade Single Inlet, Grounding, Wetguard (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$136.91 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Features
Specifications
- 6-15P
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox PBT cover
Specifications
- Color: Yellow
- Grounding: Grounding
- CSA: C22.2 No. 42
- Current Limiting: Full Rated Current
- Terminal Screws: Electroless Nickel-coated Brass
- Mounting and Assembly Screws: Stainless steel, non-magnetic
- Blades/Contacts, Terminal Clamps: Electroless Nickel-coated Brass
- NEMA: WD-6
- Device Type: Straight Blade Inlet
- Screw Terminal Torque: 12-14 in-lbs
- Wiring Module: Nylon
- Flammability: Rated V-2 per UL 94 (wiring module)
- ANSI: C-73
- Enclosure Rating: NEMA 4, 4X, 12 IEC IP66
- Operating Temperature: -40 °C to 60 °C
- RoHS Compliant: TRUE
- UL: 498
- Wire: 3
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Warranty: Limited Lifetime Warranty
- Country of Origin: Mexico
- Terminal Accom.: #18 AWG to # 10 AWG
- Wiring Module Mounting Cup: Valox PBT
- Environment: Wet
- Dielectric Voltage: Withstands 2000V per UL498
- Cover/Lid: Valox PBT
- Amperage: 15 A
- Pole: 2
- Brand: Wetguard
- Voltage: 250 VAC
- Cover Gasket: Santoprene TPV
- Torsion Spring Mechanism (Flip Lids): Stainless Steel
- NOM: 57
- Product ID: Ratings and NEMA I.D. permanently marked on device
Specs
–
| Country of Origin: | Mexico |
|---|
