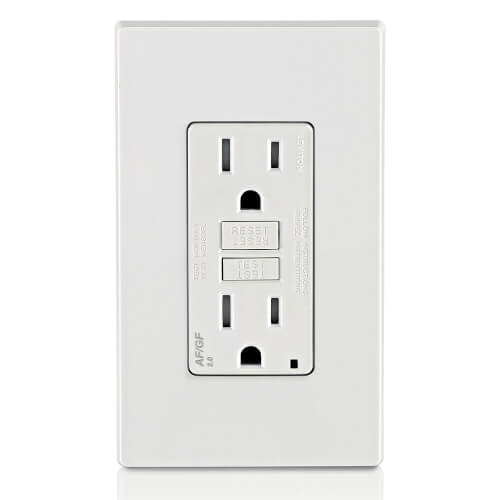

SmartlockPro Tamper-Resistant AFCI/GFCI Receptacle, 15A, NEMA 5-15R - White (125V)

The SmartlockPro® Dual Function AFCI/GFCI Receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology, the SmartlockPro Dual Function AFCI/GFCI Receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and, if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro Dual Function AFCI/GFCI Receptacle offers a National Electrical Code® (NEC®) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.

Product Features

• Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
• Engineered to meet the latest UL standard for auto-monitoring (self-test); periodically conducts an automatic internal test to confirm that GFCI protected power is available
• On initial power up, tests the GFCI circuit within 3 seconds
• Patented Lockout Action prevents reset if the device is damaged
• Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
• TEST and RESET buttons are readily accessible on the face of the device
• Improved immunity to high frequency noise reduces nuisance tripping
• Superior resistance to electrical surges and over-voltages enhancing reliability
• Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed)
• One-piece T-design trip latch mechanism provides efficient operation
• Impact-resistant thermoplastic cover and body for durability
• Expanded wiring options with nine back-wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
• Compatible with all Decora® devices and wallplates for multi-gang installation option; available in select popular colors

Product Specifications

• Amperage: 15A
• At Rated Voltage: 1 HP
• Brand: SmartlockPro
• Color: White
• Feature: AFCI, Self-Test, Tamper-Resistant
• Grounding: Self-Grounding
• NEMA: 5-20R
• Pole: 2
• Series: AGTR1
• Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
• Strap Material: Galvanized Steel
• Termination: Back & Side
• Type: Duplex Receptacle
• Voltage: 125 VAC
• Wallplate: Included
• Warranty: 2-Year Limited
• Wire: 3
