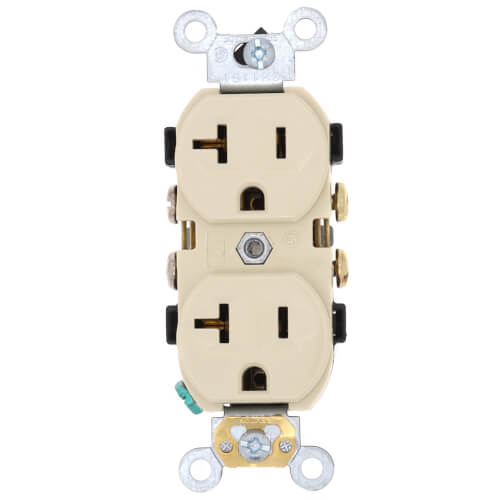

Commercial Grade Duplex Receptacle w/ Self Grounding Clip, 20A, NEMA 5-20R - Ivory (125V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

The Leviton CR20-I 20A duplex receptacle features a safe self-grounding clip. It is a commercial grade outlet in an ivory color. This ivory outlet is a great addition to any new construction or can replace an existing receptacle. Leviton products feature a simple side wiring installation that can be done quickly and easily. The attached grounding clip saves time by automatically grounding itself when installed on a properly grounded wallbox. This is a high-quality Leviton product that was built to last and carries Leviton's 10 year warranty.

Features:

• Simple and Quick Installation
• Attached Grounding Clip Saves Time
• High Quality Leviton Product
• 10 Warranty Through Leviton

Specifications:

• Ground: Self Grounding
• Color: Ivory
• Amperage: 20 Amp
• Voltage: 125 Volt
• NEMA: 5-20R
• Pole: 2
• Wire: 3
• Termination: Side
• Face Material: Nylon
• Body Material: Nylon
• Strap Material: Steel
• Electrical Specifications Dielectric Voltage: Withstands 2000V per UL498
• Current Limiting: Full Rated Current
• Temperature Rise Max 30C after 100 cyc OL at 150 pct rated current
• Environmental Specifications: Flammability Rated V-2 per UL94
• Operating Temp. -40C to 60C
• AC Horsepower RatingsAt Rated Voltage 1 HP
• Standards and Certifications: NEMA WD-2 WD-6
• ANSI C-73
• UL498 File E13399
• UL Fed Spec WC-596 File E13399
• CSA C22.2 No. 42 File 152105
• NOM 057
