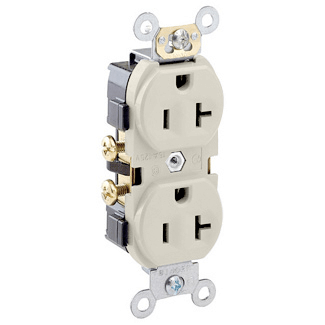

Commercial Grade Duplex Receptacle w/ Self Grounding Clip, 20A, NEMA 5-20R - Light Almond (125V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

The Leviton 20A Duplex Receptacle, Commercial Grade with Self Grounding Clip - Light Almond (CR20-T) is the perfect replacement for an existing receptacle or can be used to add a new receptacle. With simple side wiring installation can be done quickly and easily. The attached grounding clip saves time by automatically grounding itself when installed on a properly grounded wallbox. This is a high-quality Leviton product that was built to last and carries Leviton's 10 year warranty.

Features:

• Simple and Quick Installation
• Attached Grounding Clip Saves Time
• High Quality Leviton Product
• 10 Warranty Through Leviton

Specifications:

• Ground: Self Grounding
• Color: Light Almond
• Amperage: 20 Amp
• Voltage: 125 Volt
• NEMA: 5-20R
• Pole: 2
• Wire: 3
• Termination: Side
• Face Material: Nylon
• Body Material: Nylon
• Strap Material: Steel
• Electrical Specifications Dielectric Voltage: Withstands 2000V per UL498
• Current Limiting: Full Rated Current
• Temperature Rise Max 30C after 100 cyc OL at 150 pct rated current
• Environmental Specifications: Flammability Rated V-2 per UL94
• Operating Temp. -40C to 60C
• AC Horsepower RatingsAt Rated Voltage 1 HP
• Standards and Certifications: NEMA WD-2 WD-6
• ANSI C-73
• UL498 File E13399
• UL Fed Spec WC-596 File E13399
• CSA C22.2 No. 42 File 152105
• NOM 057
