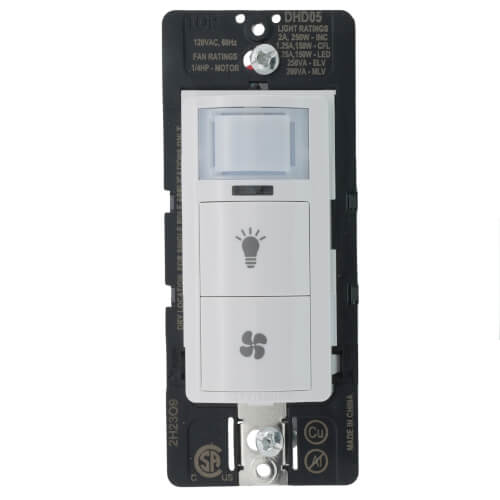

Decora In-Wall Humidity Sensor & Fan Control w/ Light Switch, 2A, 1P, 120V (White)

Decora Combination Humidity Sensor and Fan Control with Light Switch, single pole. Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive. Can be installed with or without a neutral wire, wallplate sold separately. Can be used to comply with the requirements of 2019 and 2022 California Title 24, Part 6, Indoor Air Quality and Mechanical Ventilation, 2019 and 2022 CALGREEN, Part II, Indoor Air Quality and Exhaust and meets requirements of ASHRAE 62.2 – White

Product Features

• Ideal for Bathroom, basement, laundry room and home spa
• Replaces a combination switch for separate control of fan and lighting
• Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
• Helps reduce energy usage by automatically operating the fan only when needed
• For use with ventilation fans up to ¼ HP
• Compatible with LED, CFL, Incandescent, Halogen, MLV and ELV lighting loads
• Can be connected to Neutral wire if Neutral is present in the wallbox; or to Earth ground if no Neutral wire is present in the wallbox
• Microprocessor control with digital sensing technology
• Zero Cross turn-on technology extends the life of switching relays
• Advanced sensing enhances detection when the room is occupied and minimizes false triggers when unoccupied
• Operating Modes for bath fan, air cycle and humidistat
• Test mode to help with sensor placement and setting adjustments
• Can be used to comply with the requirements of 2019/2022 California Title 24, Part 6, Indoor Air
• Quality and Mechanical Ventilation
• Complies with the requirements of 2019/2022 CALGREEN, Part II, Indoor Air Quality and Exhaust
• Meets requirements of ASHRAE 62.2
• Color change kits are available in Black, Brown, Gray, Ivory, Light Almond and White (DHDKT-00x)
• 5 Year Limited warranty

Product Specifications

• Adjustment: Programmable
• Color: White
• Dimensions: W 1.73" X D 0.95" X H 4.13"
• Grade: Residential
• LED Color: Green and Red
• Load Rating: Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive
• Mounting Type: Wall Switch
• Neutral: Optional
• Power Consumption: <0.5 Watts
• Sensor Type: Humidity
• Style Name: Decora
• Switch: Relay
• Switch Type: Single-Pole/Single Pole
• Time Delay: 10, 20, 30 or 45 minutes
• Voltage: 120 VAC
• Wallplate: Not Included
• Warranty: 5-Year Limited
• Wiring: Ground or Neutral Required
• ASHRAE 62.2: Yes
• CALGREEN: Yes
• California Title 24: Yes
• Standards and Certifications: CSA
