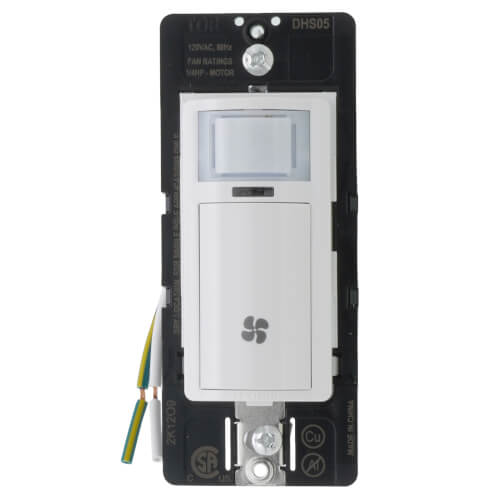

Decora In-Wall Humidity Sensor & Fan Control, 1P, 120V (White)

Decora Humidity Sensor and Fan Control, single pole, 1/4 HP Motor, 300W LED/CFL, 600W Incandescent/Halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage. Can be installed with or without a neutral wire, line and load wires are interchangeable, wallplate sold separately. Can be used to comply with the requirements of 2019 and 2022 California Title 24, Part 6, Indoor Air Quality and Mechanical Ventilation, 2019 and 2022 CALGREEN, Part II, Indoor Air Quality and Exhaust and meets requirements of ASHRAE 62.2 – White.

Product Features

• Ideal for Bathroom, basement, laundry room and home spa
• Replaces a single pole switch for control of a ventilation fan or fan/light combination
• Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
• Helps reduce energy usage by automatically operating the fan only when needed
• For use with ventilation fans up to ¼ HP
• Compatible with LED, CFL, Incandescent, Halogen, MLV and ELV lighting loads
• Can be connected to Neutral wire if Neutral is present in the wallbox; or to Earth ground if no Neutral wire is present in the wallbox
• Interchangeable line and load wires saving installation time
• Microprocessor control with digital sensing technology
• Zero Cross turn-on technology extends the life of switching relays
• Advanced sensing enhances detection when the room is occupied and minimizes false triggers when unoccupied
• Operating Modes for bath fan, air cycle and humidistat
• Test mode to help with sensor placement and setting adjustments
• Can be used to comply with the requirements of 2019/2022 California Title 24, Part 6, Indoor Air Quality and Mechanical Ventilation
• Complies with the requirements of 2019/2022 CALGREEN, Part II, Indoor Air Quality and Exhaust
• Meets requirements of ASHRAE 62.2
• Color change kits are available in Black, Brown, Gray, Ivory, Light Almond and White (DOSKT-00x)
• 5 Year Limited warranty

Product Specifications

• Adjustment: Programmable
• Color: White
• Dimensions: W 1.73" X D 0.95" X H 4.13"
• Grade: Residential
• LED Color: Green and Red
• Load Rating: 600W Incandescent, 300W LED/CFL, 400VA ELV, 400VA MLV, 1/4th HP Motor
• Neutral: Optional
• Power Consumption: <0.5 Watts
• Sensor Type: Humidity
• Style Name: Decora
• Switch: Relay
• Switch Type: Single-Pole
• Time Delay: 10, 20, 30 or 45 minutes
• Voltage: 120 VAC
• Wallplate: Not Included
• Warranty: 5-Year Limited
• Wiring: Ground or Neutral Required
• ASHRAE 62.2: Yes
• CALGREEN: Yes
• California Title 24: Yes
• Standards and Certifications: CSA
