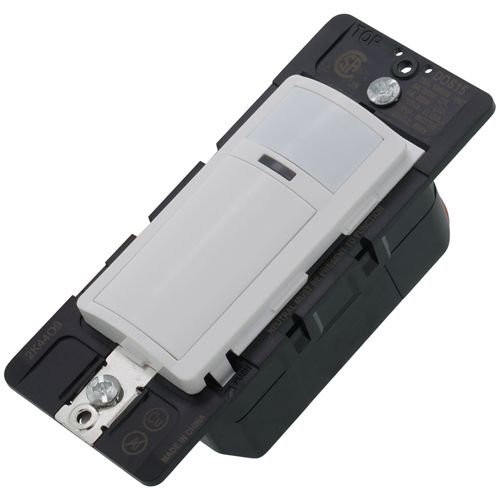

Decora 180-Degree Wall Occupancy Sensor, Auto-On, 900 Sq. Ft. 1 Pole, Multi-Way/Sensor, White, Ivory, Light Almond

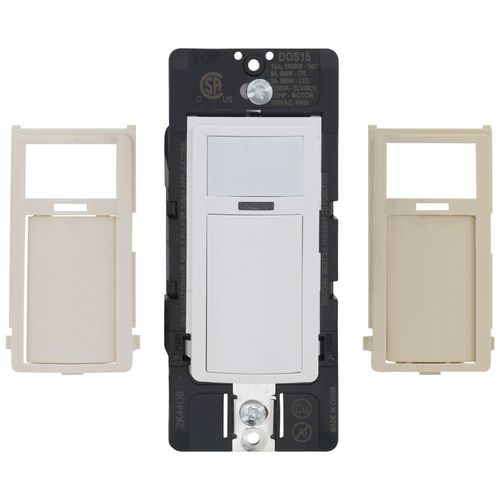

Decora Occupancy Motion Sensor Light Switch. 180° PIR automatic-on, automatic-off, single pole, 3-way or multi-location (multi-way) when used with DD0SR switch companions or multi-sensor with two DOS15 sensors, 600W LED/CFL, 1800W Inc/Halogen 1200VA ELV/MLV/FL, 1/2HP Motor, 15A Resistive, wallplate sold separately. Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements – White with ivory and light almond faceplates included

Product Features

• CONVENIENT – turns lights on/off automatically based on motion
• EASY TO INSTALL – Slim profile fits in most wallboxes
• FLEXIBLE – multi-sensor application where two sensors are needed for the coverage area, such as an "L-shaped" room
• VERSATILE – for higher wattage fixtures and exhaust fans

Product Specifications

• Auto-ON/Auto-OFF: Yes
• California Title 24: Yes
• Color: White, Ivory, Light Almond
• Coverage (Sq.Ft.): 180°, 900 Sq. Ft
• Grade: Residential
• LED Color: Green and Red
• Load Rating: 600W LED/CFL, 1800W Incandescent/Halogen, ½ HP, 1200VA ELV, MLV, FL, 15A Resistive
• Mounting Type: Wall Switch
• Neutral: Optional
• Pole: 3
• Sensor Technology: Passive Infrared
• Sensor Type: Occupancy
• Standards and Certifications: CSA, FCC, Title 24
• Style Name: Decora
• Switch: Relay
• Time Delay: 1M, 5M, 10M, 20M
• Voltage: 120 VAC
• Wallplate: Not Included
• Warranty: 5-Year Limited

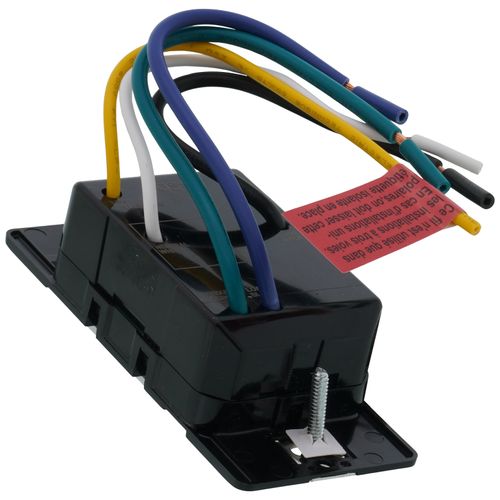

• Wiring: Ground or Neutral Required
