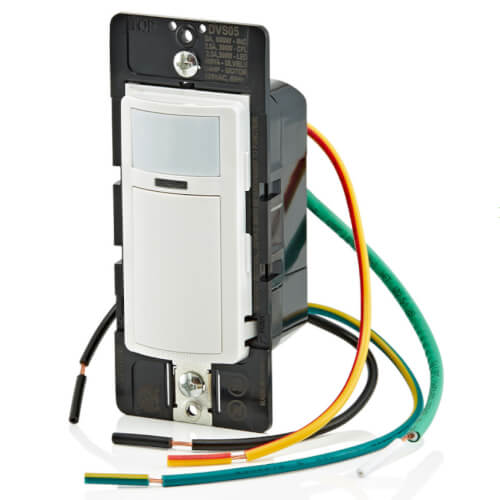

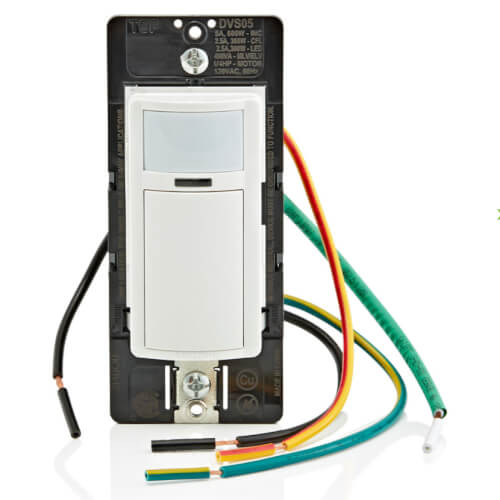

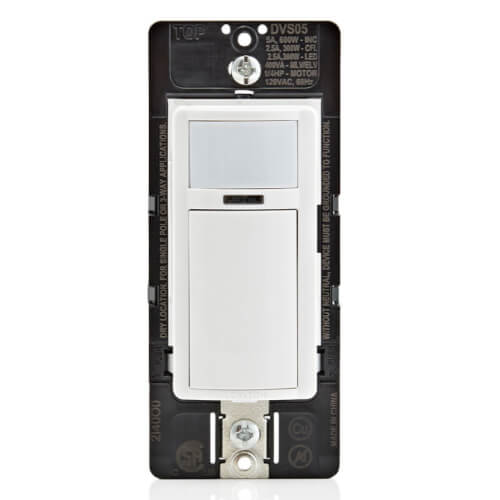

1P or 3-Way Decora 180-Degree Wall Switch Vacancy Sensor, Manual-On, 900 Sq. Ft. (5A) - White, Ivory, Light Almond

Leviton’s line of Decora Motion Sensors provide a cost effective solution for all your residential needs. The devices offer flexible single pole or 3-way installation options, including wiring with a neutral or by using an earth ground connection, and a slim profile for ease of installation. These features make them ideal for new construction and for retrofit in older wallboxes with limited space.

With state-of-the-art technology and modern aesthetics, users will enjoy optimal management of lighting and motor loads. The sensors use passive infrared (PIR) detection technology to monitor a room for occupancy through a segmented lens.

Product Features

• Manual-ON/Automatic OFF operation
• Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage or Motor Loads
• Provides 180° Field-of-View, 900 sq. ft. of coverage
• Shallow design easily fits in the wallbox; can replace single pole switch
• Leaded terminals for easier installation
• Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
• Interchangeable line and load wires
• Single pole or 3-way when used with a single pole or 3-way switch
• Program settings without removing the wallplate or faceplate
• Low profile design blends in with walls for a discreet appearance
• Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
• Adjustable Range (sensitivity) to fit various coverage areas
• Convenient push-button provides Manual OFF light switching at any time
• Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements

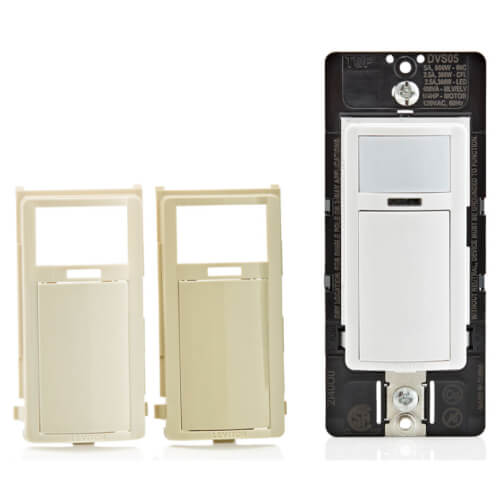

• Color change kits are available

Product Specifications

• Auto-ON/Auto-OFF: No
• California Title 24: Yes
• Color: White, Ivory, Light Almond
• Coverage (Sq.Ft.): 180°, 900 Sq. Ft
• Grade: Residential
• LED Color: Green and Red
• Load Rating: 300W LED/CFL, 600W Incandescent/Halogen, 1/4 HP, 400VA ELV, MLV, 5A Resistive
• Mounting Type: Wall Switch
• Neutral: Optional
• Ordering Notes: Includes White, Light Almond and Ivory Color Change Kit
• Poles: 3
• Sensor Technology: Passive Infrared
• Sensor Type: Vacancy
• Switch: Relay
• Time Delay: 1M, 5M, 10M, 20M
• Voltage: 120 VAC
• Wallplate: Not Included
• Wiring: Ground or Neutral Required
• Standards and Certifications: CSA, FCC, Title 20, Title 24
• Warranty: 5-Year Limited
