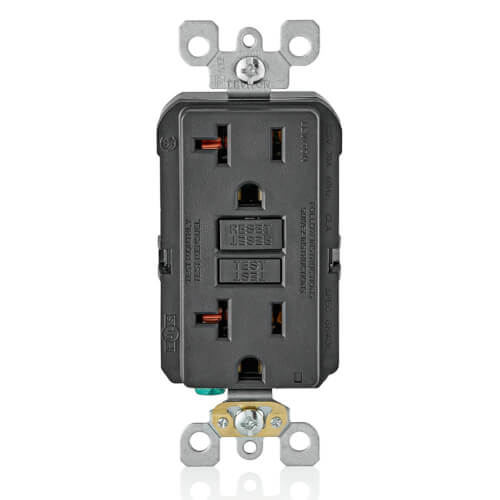

SmartlockPro Heavy-Duty Self-Test GFCI Duplex Receptacle w/ Wall Plate, 20A, NEMA 5-20R - Black (125V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

Industry-leading quality, professional grade lockout action, and the slimmest profile on the market make SmartlockPro Self-Test GFCIs a smart choice in ground fault circuit interrupter protection. Engineered to meet the latest UL standard for auto-monitoring (self-test), our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that protected power is available.

Product Features

• Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
• On initial power up, tests the GFCI within 3 seconds
• Auto-monitoring exceeds the UL requirement
• Auto adapts and shifts to more frequent testing if potential problem is detected
• Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
• Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
• Electronics are designed to minimize any false triggers
• Reduced depth makes it easier to install in any electrical box, even shallow ones
• Terminals allow for easy wiring options – back and side wire capable
• External back wire clamps provide visual indication of proper wire seating
• Withstands high torque and resists wire pullout
• Standard brass self-grounding clip
• Trip threshold meets or exceeds UL requirements for tripping time
• Improved immunity to high-frequency noise reduces nuisance tripping
• Advanced electronics design provides superior resistance to electrical surges and over-voltages
• Compatible with all Decora devices and wallplates; available in select Decora colors
• UL Fed Spec WC-596 rated

Product Specifications

• Amperage: 20A
• At Rated Voltage: 1 HP
• Color: Black
• Feature: Self-Test
• Grounding: Self-Grounding
• NEMA: 5-20R
• Poles: 2
• Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
• Strap Material: Galvanized Steel
• Termination: Back & Side
• Type: Standard Duplex
• Voltage: 125 VAC
• Operating Temperature: -35°C to 66°C
• Wallplate: Included
• Warranty: 2-Year Limited
• Wires: 3
