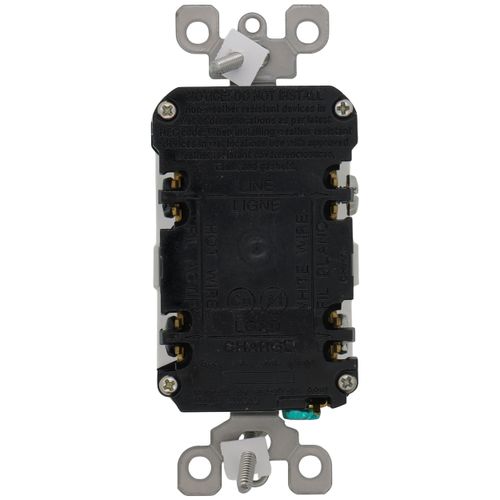

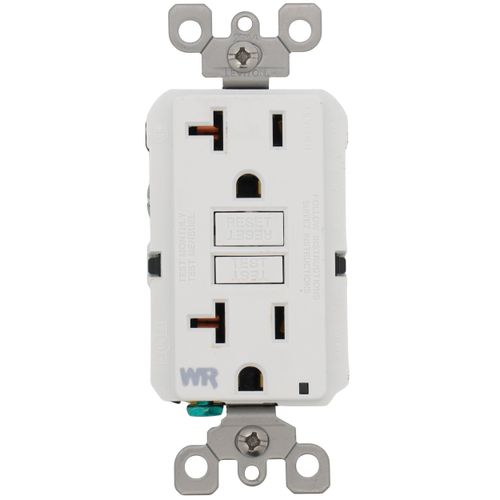

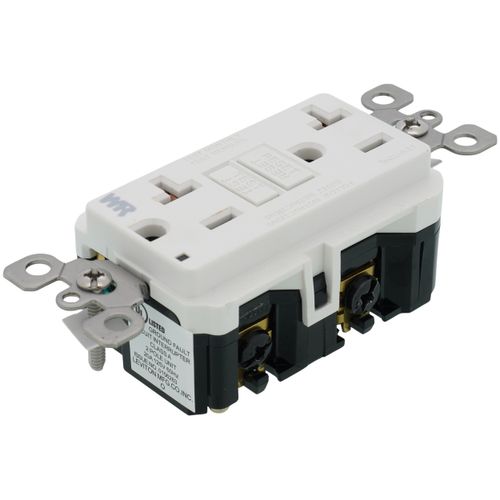

SmartlockPro Slim Tamper/Weather Resistant Self-Test GFCI Receptacle, NEMA 5-20R - White (125V)

Product Features

• Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted
• On initial power up, tests the GFCI within 3 seconds
• Auto-monitoring exceeds the UL requirement
• Auto adapts and shifts to more frequent testing if potential problem is detected
• Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
• Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
• Electronics are designed to minimize any false triggers
• Reduced depth makes it easier to install in any electrical box, even shallow ones
• Terminals allow for easy wiring options - back and side wire capable
• External back wire clamps provide visual indication of proper wire seating
• Withstands high torque and resists wire pullout
• Standard brass self-grounding clip
• Trip threshold meets or exceeds UL requirements for tripping time
• Improved immunity to high-frequency noise reduces nuisance tripping
• Advanced electronics design provides superior resistance to electrical surges and over-voltages
• Compatible with all Decora devices and wallplates; available in select Decora colors
• UL Fed Spec WC-596 rated

Product Specifications

• Grade: Residential/Commercial Specification Grade
• At Rated Voltage: 1 HP
• Amperage: 20A
• Color: White
• NEMA: 5-20R
• Poles: 2
• Feature: Self Test, Tamper Resistant, Weather Resistant
• Termination: Back & Side
• Voltage: 125 VAC
• Wires: 3
• Operating Temperature: -35°C to 66°C
• Warranty: 2-Year Limited
