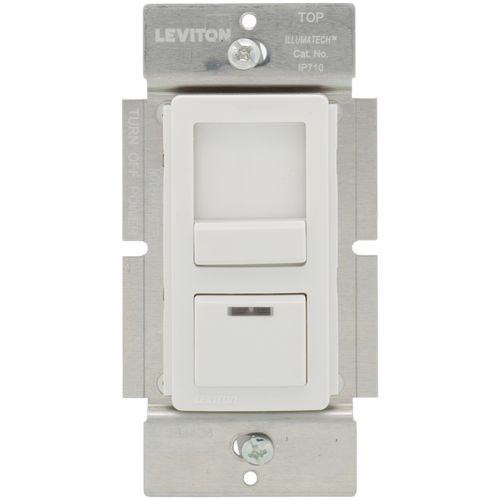

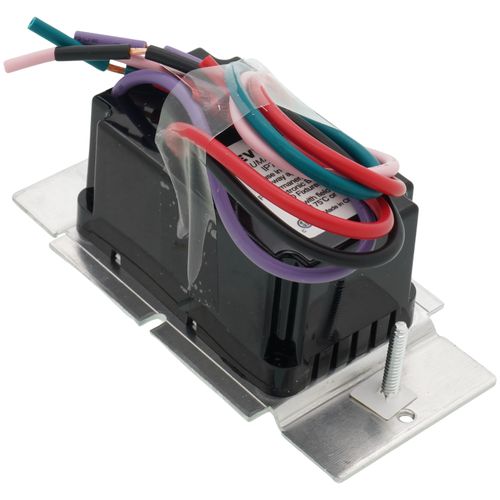

IllumaTech Preset Fluorescent Slide Dimmer w/ LED Locator for LED 0-10V, 1200VA (120/277V)

Note: Wallplate sold separately.

IllumaTech Slide Preset Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies with LED locator light, suitable for use with Class 1 or Class 2 wiring, 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White, Ivory & Light Almond.

Product Features:

• Innovative: Designed for use with LED fixtures using 0-10V power supplies
• Advanced: No power pack required for switching
• Exceptional: Superior quality and dimming performance
• Action: Standard ON/OFF
• Available Color Kits: Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
• Color Change Kit: IPKIT Series
• Frequency: 60 Hz
• Light: LED Locator Light
• Load Rating: 1200VA
• Load Type: Electronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply
• Ordering Notes: Incl White, Ivory and Light Almond Color Kit
• Preset: Preset
• Protection: Radio/TV Filter
• Standards and Certifications: cCSAus
• Style Name: IllumaTech
• Switch Type: Single-Pole & 3-Way
• Type: Slide
• Voltage: 120/277 VAC
• Warranty: 5-Year Limited

Specifications:

• Designed specifically for use with LED fixtures using 0-10V power supplies and Mark 7 0-10V fluorescent ballasts
• Dual voltage 120V/277V; 50mAmps maximum sink current
• No power pack required for switching
• Compatible with Decora Plus screwless and Decora standard designer wallplates (sold separately)

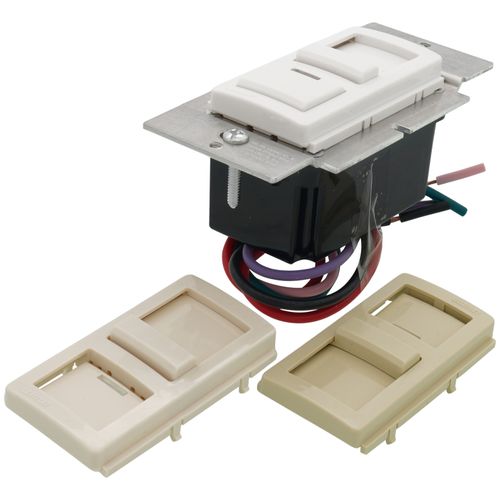

• Six product options in each box with three changeable faceplates and single pole or 3-way functionality when used with a 3-way switch
• Fluid slide movement allows fine adjustment of light level with minimal effort
• Captive wraparound slide bar remains securely attached
