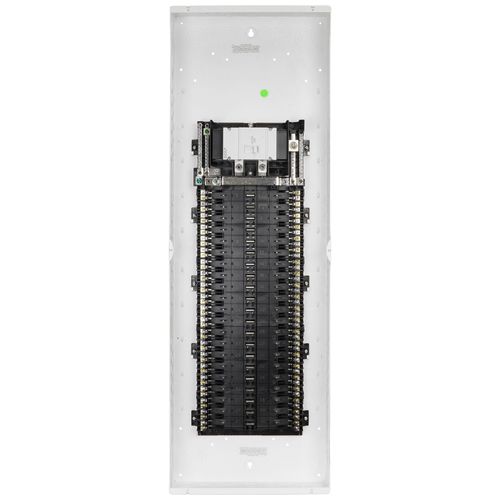

42 Circuit, 42 Space Indoor Load Center Main Breaker, 120/240V (200A)

Indoor Load Center with 200A Main Circuit Breaker Factory Installed, 42 Spaces, NEMA 1 Rated. Includes Enclosure and Interior Only. Door Sold Separately.

Features & Benefits:

• EASY - Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
• SUPERIOR CONDUCTIVITY - All Leviton Load Centers come standard equipped with tin plated copper bussing
• ORGANIZED - Notches stamped into the enclosure for cable ties promote secure and neat wiring
• MODERN DESIGN - Features a white, powder coated finish for a sleek, modern appearance

Specifications:

• Amperage: 200
• Short Circuit Current Rating: 22 KA
• Spaces: 42
• Circuits: 42
• Type of Load Center: Main Breaker
• Voltage: 120/240V
• Color: White
• Busbar Material: Copper, Bright Tin-Plated
• Enclosure Material: Galvanized Steel, White Powder Coat
• Dimensions: 43" H x 14.25" W x 4" D
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• Supply Connections: 3 AWG - 300 MCM Cu/Al
• NEMA Enclosure Type: NEMA 1 Indoor
• Warranty: 10 yr Limited

Standards & Certifications:

• UL 50
• UL 50E
• UL 67
• UL 869A

Note: Cover Door is sold separately:

• Cover Door without window: LDC42 42 Space Indoor Load Center Cover & Door (White)
• Cover Door with window: LDC42-W 42 Space Indoor Load Center Cover & Door w/ Window (White)
