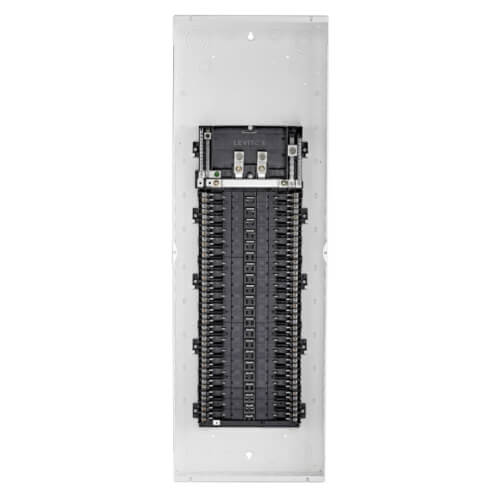

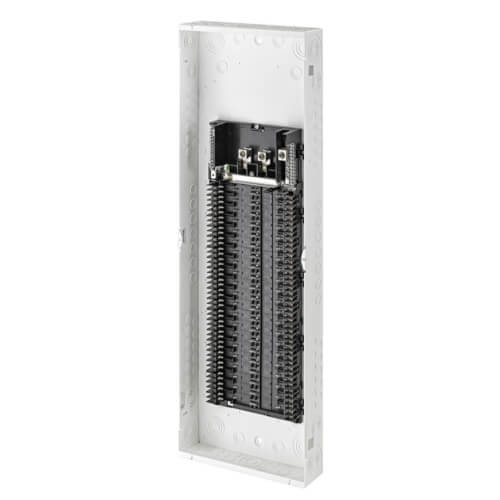

42 Circuit, 42 Space Indoor Load Center w/ Main Lugs, 120/240V (225A)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$164.03 each
In Stock
Get 1 Thu, Jul 9
Order by today, receive Thursday
MANUALS (6)
This item replaces: LP422-ML
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
225 Amps
120/240V
Indoor Only
10 Year Limited Warranty
4" Depth
43" Height
Description
–
Indoor Load Center with Main Lugs Factory Installed, 42 Spaces, NEMA 1 Rated. Includes Enclosure and Interior Only. Door Sold Separately.
Features & Benefits:
Specifications:
Standards & Certifications:
Features & Benefits:
- EASY - Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY - All Leviton Load Centers come standard equipped with tin plated copper bussing
- CONVERTIBLE - Easily change from main lug to main breaker
- MODERN DESIGN - Features a white, powder coated finish for a sleek, modern appearance
Specifications:
- Amperage: 225
- Short Circuit Current Rating: 10 KA
- Spaces: 42
- Circuits: 42
- Type of Load Center: Main Lug
- Voltage: 120/240V
- Color: White
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, White Powder Coat
- Dimensions: 43" H x 14.25" W x 4" D
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- NEMA Enclosure Type: NEMA 1 Indoor
- Warranty: 10 yr Limited
Standards & Certifications:
- UL 50
- UL 50E
- UL 67
- UL 869A
Specs
–
| Product Type: | Load Center |
|---|---|
| Amperage: | 225 |
| Voltage: | 120/240V |
| Number of Circuits: | 42 |
| Spaces: | 42 |
| Current (amps): | 10 kA |
| Enclosure Type: | NEMA-1 |
| Installation Type: | Indoor Only |
| Warranty: | 10 Year Limited |
| Depth (Inches): | 4" |
| Height (Inches): | 43" |
| Width (Inches): | 14-1/4" |
| Weight (lbs): | 33 lbs |
| Operating Temp Range: | -40°F to 158°F |
| Color: | White |
