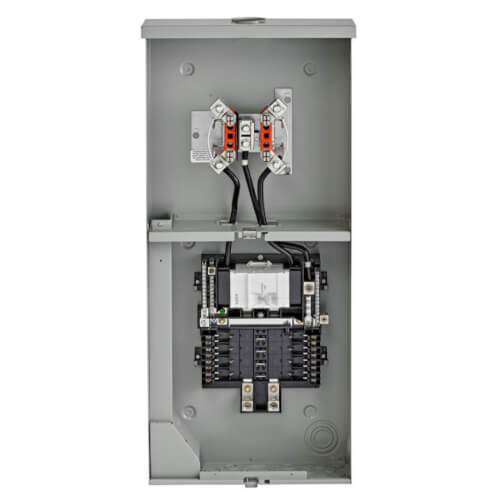

8 Circuit, 8 Space Overhead Ringless Meter Main Combo Breaker (150A)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
LP815-MC has been discontinued
Discontinued June 9, 2022
This product was discontinued by the manufacturer.
MANUALS (4)
Suggested Alternative:
8 Circuit, 8 Space Overhead Ringless Meter Main Combo Breaker w/ Internal Trough (150A)
Backorder
Get it Thu, Jul 16 - Thu, Aug 13
Product Highlights
–
150 Amps
120/240V
Outdoor Only
10 Year Limited Warranty
36" Height
Gray
Description
–
Outdoor Meter Main Combo with 150A Main Circuit Breaker Factory Installed, 8 Spaces, NEMA 3R Rated. Includes Enclosure, Ringless Door, and Feed-Thru Lugs
Features & Benefits:
Specifications:
Standards & Certifications:
Features & Benefits:
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- ORGANIZED – Notches stamped into the enclosure for cable ties promote secure and neat wiring
- UTILITY REQUIREMENT – Meter Equipment Group (MEG) Approved
Specifications:
- Amperage: 150
- Short Circuit Current Rating: 22 kA
- Spaces: 8
- Circuits: 8
- Type of Load Center: Meter Main
- Voltage: 120/240V
- Color: Gray
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Dimensions: 36" H x 16.6" W x 5.2" D
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 6 AWG – 350 MCM
- NEMA Enclosure Type: NEMA 3R Outdoor
- Operating Temperature: 0°C to 40°C
- Warranty: 10 yr Limited
Standards & Certifications:
- UL 50
- UL 50E
- UL 67
- UL 869A
Specs
–
| Product Type: | Meter Box |
|---|---|
| Amperage: | 150 |
| Voltage: | 120/240V |
| Number of Circuits: | 8 |
| Spaces: | 8 |
| Current (amps): | 22 kA |
| Enclosure Type: | NEMA-3R |
| Installation Type: | Outdoor Only |
| Operating Temp Range: | 32° to 104°F |
| Warranty: | 10 Year Limited |
| Height (Inches): | 36" |
| Weight (lbs): | 56.88 lbs |
| Color: | Gray |
