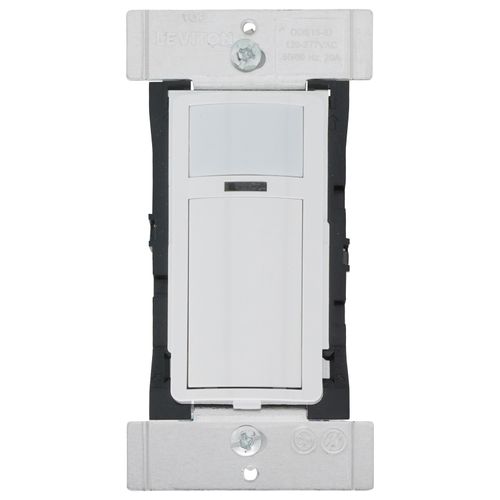

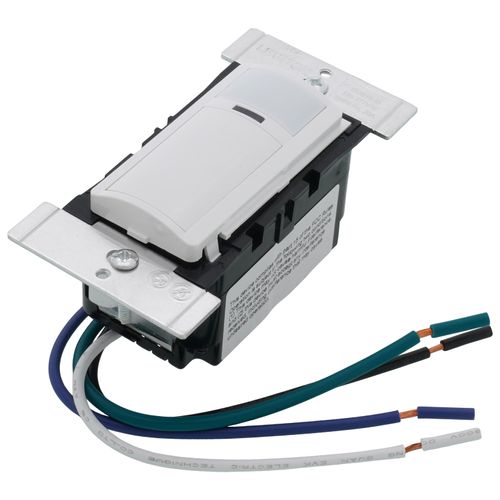

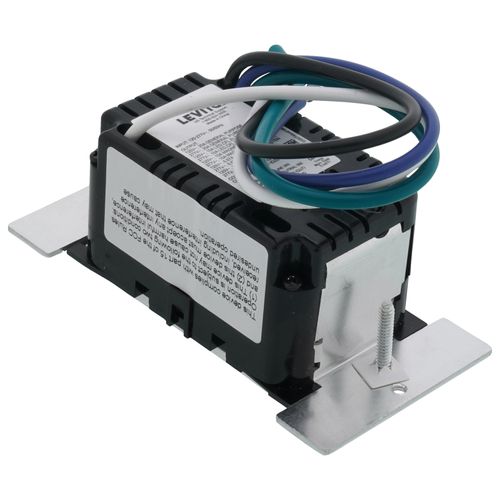

Decora Infrared In-Wall Occupancy Sensor, 2100 Sq. Ft. - White

The Leviton Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistent lens. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-IDW’s vacancy mode features a Manual-ON/Auto-OFF for installations where manual-ON switching is required for energy code applications.

Configuration of ODS15-IDW is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several popular preconfigured options. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies.

Features:

• Application: Small Offices, Lobbies, Small Meeting Rooms
• Color: White
• Feature: App configurable
• Grade: Commercial
• Mounting: Wall Switch
• Product Line: ODS15
• Sensor Technology: Passive Infrared (PIR)
• Sensor Type: Occupancy / Vacancy

Specifications:

• Coverage (Sq.Ft.): 1000
• Pattern: 180°
• Frequency: 50/60Hz
• Load Rating: See Product Specification and Data Sheet
• Neutral Wire Connection: Required
• Voltage: 120-277 VAC
• IP Rating: IP10
• Mounting Type: Wall Switch
• Switch Type: Single-Pole
• Storage Temperature Range: -40°F to 185°F (-40°C to 85°C)
• California Title 24: Yes
• Listings: IECC, UL and cUL listed, FCC, ICC
• Testing and Code Compliance: Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
• Warranty: 5-Year Limited
