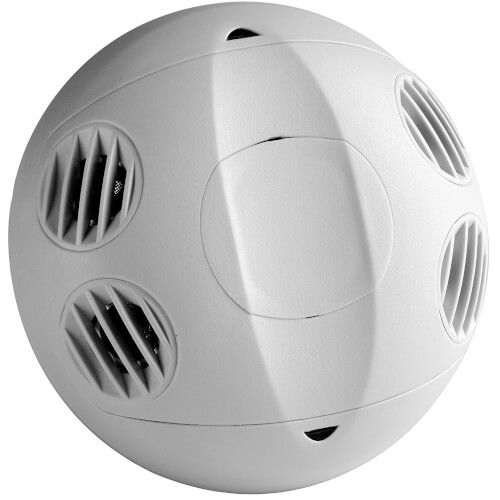

Ultrasonic 360 Degree Occupancy Sensor, Ceiling Mount, 2000 Sq. Ft. Coverage - White

Occupancy Sensor lighting control, Ceiling Mounted, Ultrasonic only, 24VDC, 30mA power consumption, 2000 sq ft: 64'Lx32'W, minor motion: 45'Lx23'W), green LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off-white.

Microprocessor based, the OSCXX-U has a self adapting feature that compensates for air flow, giving it excellent immunity to air currents and other interference.

Leviton backs its occupancy sensors and their great features with an excellent 5-year limited warranty.

Features:

• Small Size: Installed sensor appears almost invisible.
• Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
• Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
• Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
• Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
• Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
• Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
• Excellent Warranty: 5-Year Limited warranty.
• Typical Applications: Cafeteria, Computer Room, Office w/Cubicles, File Room, Partitioned Restroom, Warehouse Open Area, Work Space General, Workout Facility, Gymnasium, or Hallway

Specifications:

• Sensor Type: Ceiling Mount
• Adjustment: Self-Adjusting
• Sensor Technology: Ultrasonic 32kHz
• Pattern Degrees: 360
• Coverage Range Sq. Ft.: 2000
• Manual Time Adjustment: 30s-30m, 6s Test Mode
• Load Rating: Uses Power Pack
• Input Voltage: 24VDC
• Current Consumption: 30mA
• Photo Cell: Ambient Override ON
• Color: White
• Standards and Certifications: CUL/US Cert
• Housing Material: High-Impact, Injection Moulded Plastic
• Code Compliance: California Title 24
