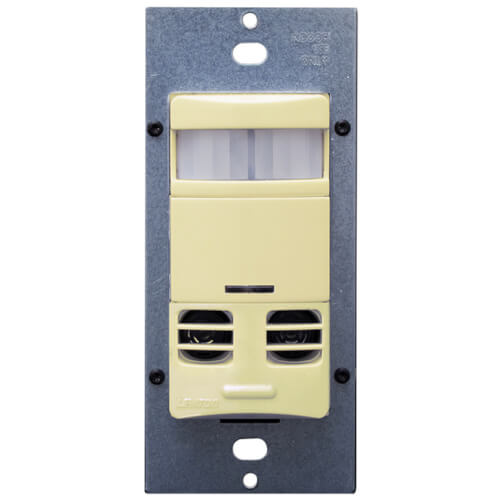

Decora Multi-Technology Wall Switch Occupancy Sensor, 2400 Sq. Ft - Ivory

The Leviton Decora Multi-Technology Wall Switch Occupancy Sensor - Ivory is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications. The OSSMT-MDI provides for and features automatic switching of incandescent lamps, low-voltage lighting with electronic and magnetic transformers, electronic and magnetic fluorescent ballasts, Maximum Reliability, Low Cost, Sensor can be ganged together with other units in a multiple-switch wallplate, Adjustable Horizontal Field of View, Fast, Simple Installation, Small Motion Sensitivity, True Zero-Cross Relay and Ambient Light Recognition.

Nite: Leviton wall switches and occcupancy sensors do not come with wall plates unless otherwise specified.

Features:

• Time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
• Exclusive Walk-through Feature- provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
• Maximum Reliability, Low Cost
• Convenient Push-Button- Provides manual ON/OFF light switch at any time
• Fast, Simple Installation- Fits in a standard wall box and replaces a single-pole wall-switch; neutral and ground connection required
• Sensor can be ganged together with other units in a multiple-switch wallplate
• Adjustable Horizontal Field of View (PIR)- May be adjusted between 180 degree and 32 degree of arc by using integral blinders located on either side of the lens
• Ambient Light Recognition- Integrated photocell prevents lights from turning ON when the room is adequately illuminated by natural light
• Small Motion Sensitivity (US)- The ultrasonic technology provides excellent small motion sensitivity
• True Zero-Cross Relay- Switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts

Specifications:

• Switch Type: Single-Pole
• Adjustment: Self-Adjusting
• Technology: Multi-Technology PIR/Ultrasonic
• Pattern Degrees: 180
• Coverage Range Sq. Ft.: 2400
• Time Adjustment: 30s-30m
• Load Rating: 800W@120V INC 1200VA@120V, 2700VA@277V FL
• Voltage: 120/277 Volt AC 60Hz
• Wiring Neutral / Ground: Neutral Required
• Photo Cell: Ambient Override OFF
• Finish: Ivory
• Standards and Certifications: UL/cUL
• Code Compliance: California Title 24
