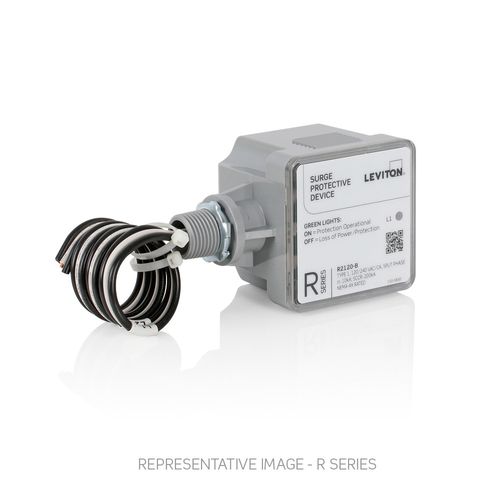

Main product image of Split Phase, Type 1 Surge Protective Device (120/240V), R2120-B
Magnifying glass
Hover image to zoom

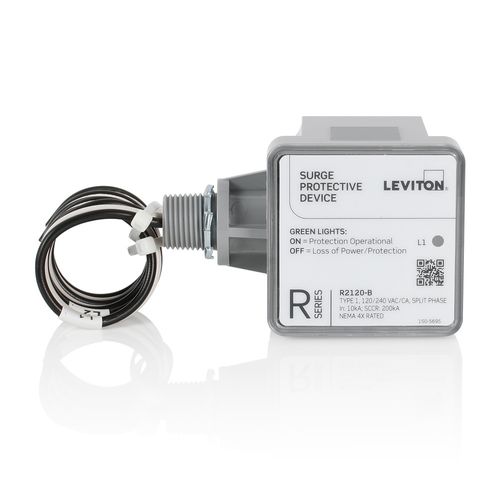

Split Phase, Type 1 Surge Protective Device (120/240V), R2120-B

Brand:
Leviton
SKU:
R2120-B
Rating:
(0)
Q&A:
(0)
Split Phase, Type 1 Surge Protective Device (120/240V), R2120-B
Magnifying glass
Hover image to zoom
$183.27 each
In Stock
In Stock
Get 25 Tue, Aug 18

MANUALS (5)

Brochure
Product Overview
Specification Sheet
Install Instructions
Specification Drawing
Brochure
Product Overview
Specification Sheet
Install Instructions
Specification Drawing
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Color
White
Product Highlight: Warranty
5 Year Limited Warranty
Product Highlight: Voltage
120/240V

Description

–
Specifications
  • R Series Type 1 Surge Panel
  • 120/240 VAC
  • Split Phase
  • Max Surge Current Rating of 36kA per Mode/36kA per Phase
  • 200kA Short Circuit Current Rating (SCCR)
  • 10kA I-nominal (l n ) Rating
  • NEMA 4X Rated Enclosure
  • Thermally Protected MOVs
  • VPR Performance Data = L-N: 700
  • L-L: 1200
  • Maximum Continuous Operating Voltage (MCOV): 180/360V
  • Plastic Enclosure
  • LED Status Monitoring
  • UL 1449 Listed
  • Approximate Lead Length = 18
  • White

Specs

–
Phase:

Split

Color:

White

Product Type:

Surge Protector

Features:

NEMA 4X

Warranty:

5 Year Limited

Voltage:

120/240V
