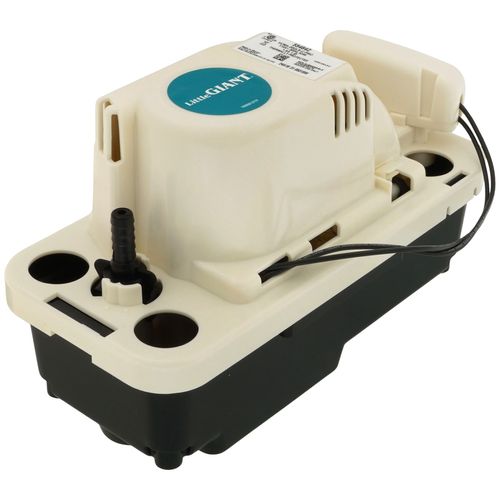

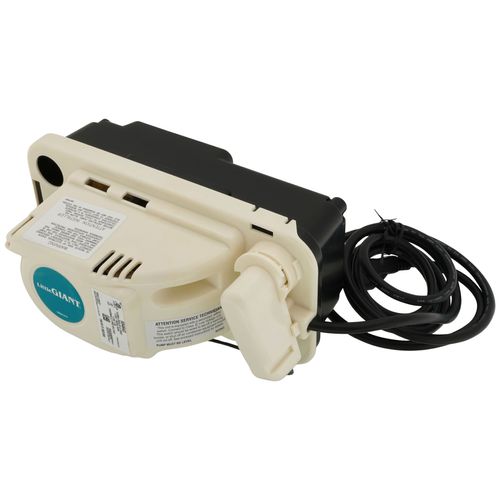

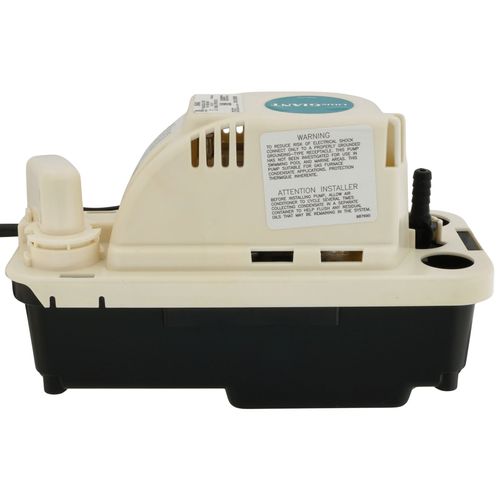

VCMA-20ULS-PRO, 84 GPH Automatic Condensate Removal Pump w/ Safety Switch & Anti-Sweat Sleeve (115V)

Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

Features:

• External test/run lever
• Slim footprint
• Vertical centrifugal pump design
• Stainless steel motor shaft
• Automatic start and stop operation
• Galvanized steel “quick install” wall mount bracket
• Some models equipped with external, float activated switch for automatic high-level water detection (overflow detection switch)
• For models with overflow detection switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
• Models equipped with overflow detection switch include two 5" switch lead wires
• 3/8" O.D. barbed ¼-turn quick release, locking discharge adapter with built-in check valve
• Rubber feet for vibration/noise dampening
• “Anti-sweat” tank sleeve included on select models and available separately for all others
• 3 - 1-1/8" diameter inlet openings, two fitted with removable cap plug (3 + 1 inlet openings for models without overflow detection switch)
• Recessed tank sump
• Oil resistant tank and check valve
• Thermally protected, fan cooled motor
• Maximum water temperature: 140 °F
• 6', 3-conductor cable with grounded 3-prong plug
• Some models include 20' x 3/8" I.D. vinyl discharge tubing
• 3-year warranty
