Description

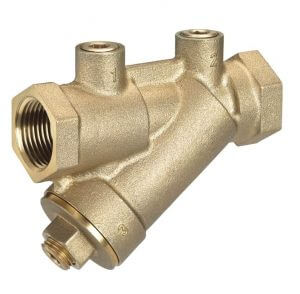

Model AL is a low-lead automatic flow control device. The removable flow cartridge is factory set to automatically limit the GPM to within ±5% of the specified flow. Standard features include EPDM O-rings and seals, FNPT end connections and dual plugged accessory ports

Specifications:
  • Pressure Ratings: 400 PSI (2758 kPA)
  • Temperature Ratings: 250°F (120°C)
  • Body Material: Naval Brass, C46500 Low-Lead
  • End Connections: FNPT, Inlet and Outlet
  • Accuracy: ±5% of flow rate
  • Seals: EPDM

Read more
Manuals (1)
Specs
Size:
1/2"
Connection Type:
Threaded
Material:
Naval Brass
Max Pressure (PSI):
400
Max Temp (F):
250°F
Flow Rate (GPM):
3
Seal:
EPDM
Features:
Temperature Port
Pressure Port
Low Lead
×
