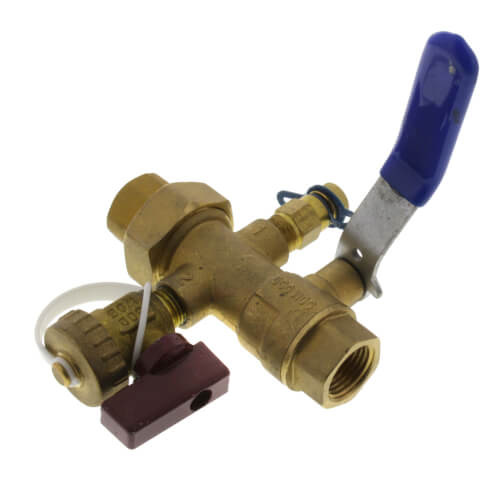

1" FNPT SB Union End Balancing Ball Valve
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$103.05 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
Threaded Connection
Forged Brass
600 MAX PSI
250°F Max Temp
Description
–
Model SB Union End Ball Valve offers positive shut-off and pressure/temperature
measurement. The ball valve has a chrome plated ball with Teflon seats, blowout
proof stem with double EPDM O-ring seals. The union has an EPDM O-ring seal
and tailpiece available in MNPT, FNPT and SWT end connections. Standard features
include Pressure/Temperature Port and Hose End Drain Valve.
Specifications:
Specifications:
- Pressure Ratings: 600 PSI (4140 kPA)
- Temperature Ratings: 250°F (120°C)
- Body Material: Forged Brass
- End Connections: Brass - Fixed End: SWT, FNPT; Union End: SWT, FNPT,& MNPT
- Ball: Chrome Plated Brass, full port, 100% positive shut-off
- Stem: Brass
- Handle: Full size Zinc Plated lever with Vinyl Grip
- Seals: EPDM
Specs
–
| Size: | 1" |
|---|---|
| Connection Type: | Threaded |
| Material: | Forged Brass |
| Max Pressure (PSI): | 600 |
| Max Temp (F): | 250°F |
| Seal: | EPDM |
| Features: | Pressure Port Hose End Drain Valve Temperature Port |
