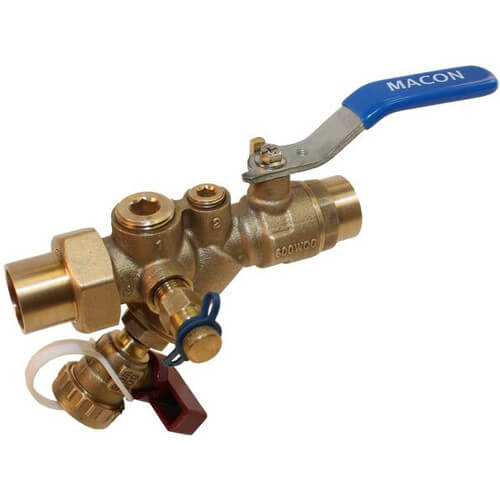

Main product image of 1-1/2" FPNT SV Combination Ball Valve, Wye Strainer and Union w/ 3/4" Bypass Port
Magnifying glass
Hover image to zoom

1-1/2" FPNT SV Combination Ball Valve, Wye Strainer and Union w/ 3/4" Bypass Port

Brand:
Macon Balancing
SKU:
MBP-SV-150F150F
Rating:
(0)
Q&A:
(0)
1-1/2" FPNT SV Combination Ball Valve, Wye Strainer and Union w/ 3/4" Bypass Port
Magnifying glass
Hover image to zoom
$213.72 each
In Stock
In Stock
Get 2 Tue, Jun 9
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
1-1/2"
Product Highlight: Connection Type
FNPT x FNPT Connection
Product Highlight: Material
Forged Brass
Product Highlight: Max Pressure (PSI)
600 MAX PSI
Product Highlight: Max Temp (F)
250°F Max Temp

Description

–
Model SV is a combination ball valve, wye strainer, and union. The ball valve has a chrome plated ball, Teflon seats, and double o-ring shaft seals. The strainer section includes a 20 mesh stainless steel strainer screen. Standard features include Pressure/Temperature port, hose end drain valve, and plugged bypass port. Union end has o-ring seal. Available with many combinations of end connection types and sizes.

Specifications:
  • Pressure Ratings: 600 PSI (4140 kPA)
  • Temperature Ratings: 250°F (120°C)
  • Body Material: Forged Brass
  • End Connections: Brass - Fixed End: SWT, FNPT; Union End: SWT, FNPT,& MNPT
  • Ball: Chrome Plated Brass, full port, 100% positive shut-off
  • Stem: Brass
  • Handle: Full size Zinc Plated lever with Vinyl Grip
  • Seals: EPDM

Specs

–
Size:

1-1/2"

Connection Method:

Threaded

Connection Type:

FNPT x FNPT

Material:

Forged Brass

Max Pressure (PSI):

600

Max Temp (F):

250°F

Port Size:

3/4"

Features:

Hose End Drain Valve

Bypass Port

Temperature Port

Pressure Port

Seal:

EPDM
