$1,318.93 each
Backorder
Get it Wed, Aug 5 - Wed, Sep 2
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1-1/2"
50000000 BTU Capacity
Description
–

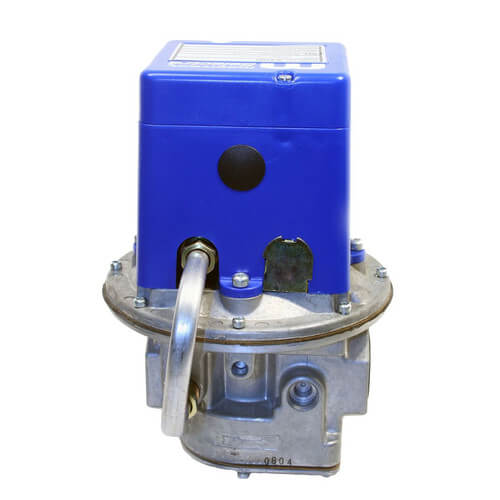

The 220 series, utilizing a servo-operated design rather than the more conventional spring-loaded design, delivers higher outlet pressure than the spring loaded models.
The main diaphragm on the Maxitrol 220 is loaded with gas pressure rather than with a spring. This gas pressure is precisely controlled by a small pilot regulator in the upper housing. When the regulated outlet pressure of the pilot regulator is changed, by spring adjustment, the outlet pressure of the main regulator will change proportionately.
Note: This product should be installed by a licensed gas fitter.
The main diaphragm on the Maxitrol 220 is loaded with gas pressure rather than with a spring. This gas pressure is precisely controlled by a small pilot regulator in the upper housing. When the regulated outlet pressure of the pilot regulator is changed, by spring adjustment, the outlet pressure of the main regulator will change proportionately.
Note: This product should be installed by a licensed gas fitter.
Specs
–
| Size: | 1-1/2" |
|---|---|
| Capacity (BTU): | 50000000 |
| Inlet Gas Pressure: | 10 psi |
