$379.45 each
In Stock
Order by today, receive Friday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
Propane
1/2 psi
Series 20, Series 21, Series 31, Series 30 System
Description
–

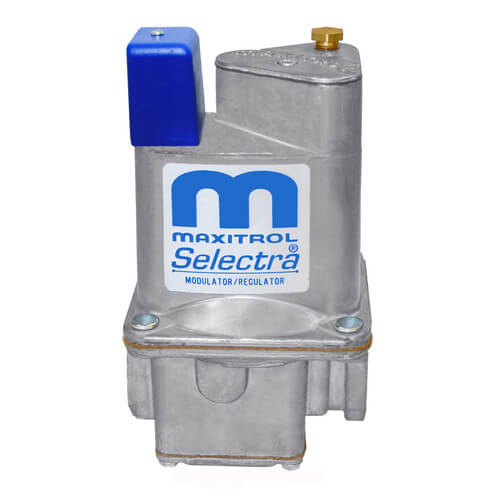

These valves use two springs in order to set the high and low fire settings. One spring (min.) surrounds the solenoid and is always in contact with the diaphragm assembly. The other spring (max.) is located above the plunger. With zero voltage applied, the minimum and maximum spring's down force, along with plunger weight, pushes down on the diaphragm thereby setting a regulated high fire. A separate pressure regulator is not required.
As voltage is applied, the plunger pulls up sufficiently until all plunger weight and maximum spring force is removed. The pressure is now controlled with the minimum spring setting giving a regulated low fire condition.
As voltage is applied, the plunger pulls up sufficiently until all plunger weight and maximum spring force is removed. The pressure is now controlled with the minimum spring setting giving a regulated low fire condition.
Specs
–
| Size: | 1" |
|---|---|
| Pressure Rating: | 1/2 psi |
| Used With: | Series 20 Series 21 Series 31 Series 30 System |
| Fuel Type: | Propane |
