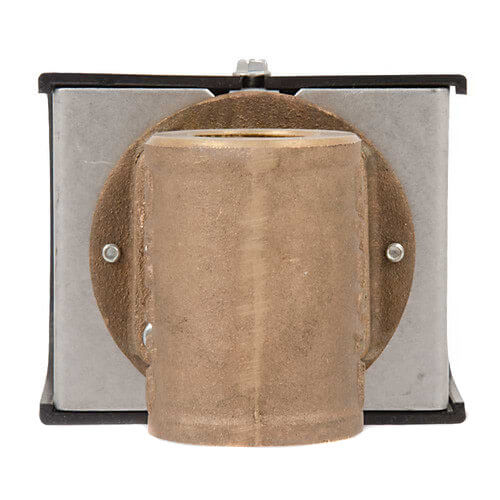

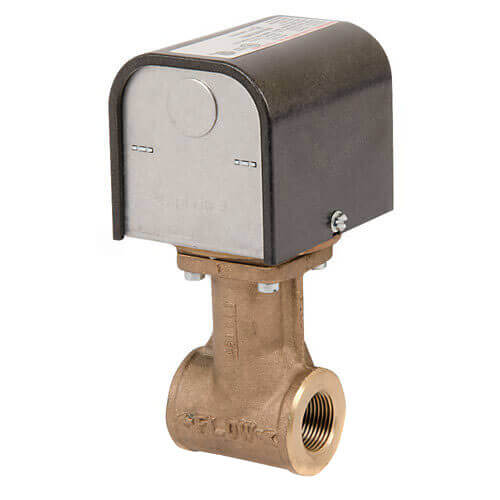

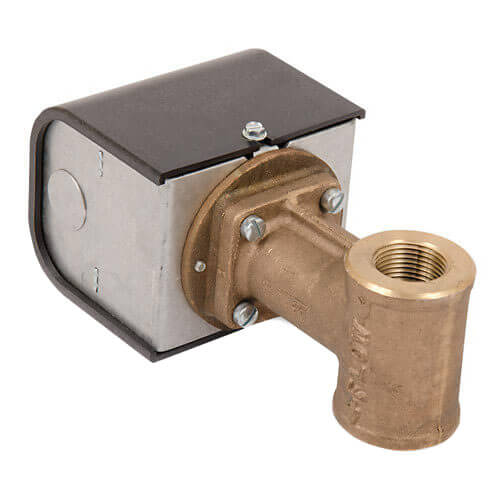

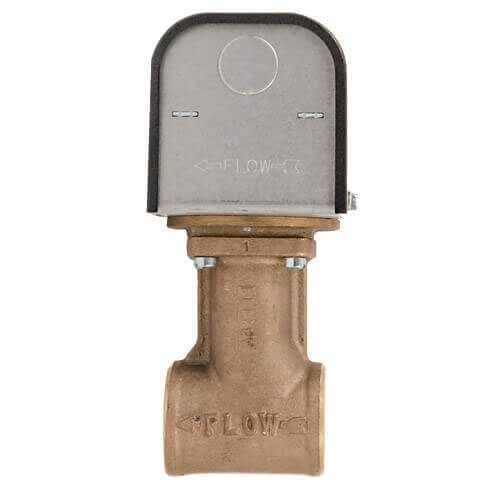

FS4-3T2-1, 1" Flow Switch w/ NPT body (Medium Flow Rate)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$296.97 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
This item replaces: FS4-3T2-1
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
7.4 Amps
120v, 240v
160 MAX PSI
32°F - 300°F
Description
–
For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others
Features
Features
- In-line configuration eliminates need for a pipe tee
- Sizes available:3/4" NPT, 1" NPT
- Paddles available for low, medium or high flow
- Two electrical knock-outs allows connection from either end
- Sensitivity adjusting screw makes flow adjustment easy
- Single pole, double throw snap switch
- Hardened stainless steel bearings minimize friction
- Sealed Monel bellows
- Minimum temperature (fluid or ambient) 32 Deg. F (0 Deg. C)
- Maximum temperature 300 Deg. F (149 Deg. C)
- Maximum pressure 160 psi (11.3 kg/cm2)
Specs
–
| Size: | 1" |
|---|---|
| Application: | Liquid Flow |
| Type: | General Purpose |
| Amperage: | 7.4 |
| Voltage: | 120v 240v |
| Max Pressure (PSI): | 160 |
| Switch: | SPDT |
| Hertz: | 60 50 |
| Temperature Range (F): | 32°F - 300°F |
