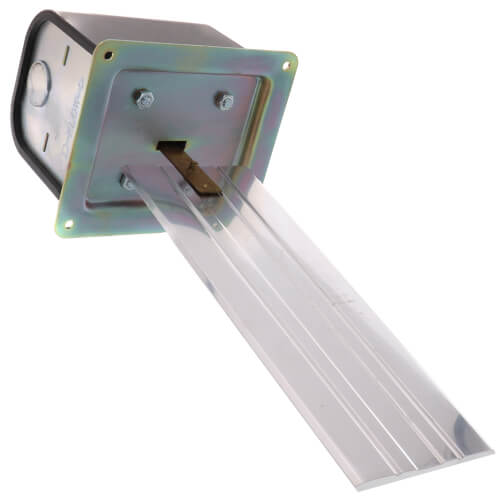

AF3, Air Flow Switch (Low Velocity)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
123400 has been discontinued
Discontinued February 20, 2025
This product was discontinued by the manufacturer.
MANUALS (3)
This item replaces: AF3
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
7.4 Amps
240v, 120v
32°F Min
Description
–
For general purpose low velocity applications where the
most economical flow switch is desired
Optional feature
most economical flow switch is desired
- Paddle fits 8" (203mm) minimum duct size
- Two electrical knock outs allow connection from either end
- Brass, steel and aluminum construction
- Single pole, double throw snap switch
- Sensitivity adjusting screw makes flow adjustment easy
- Can be equipped with a time delay relay
- Minimum ambient temperature 32 Deg. F (0 Deg. C)
- Maximum duct temperature 275 Deg. F (135 Deg. C)
Optional feature
- Two SPDT snap switches
Specs
–
| Application: | Air Flow |
|---|---|
| Type: | Low Velocity |
| Amperage: | 7.4 |
| Voltage: | 240v 120v |
| Hertz: | 60 50 |
| Max Duct Temp (F): | 300°F |
| Temperature Range (F): | 32°F Min |
