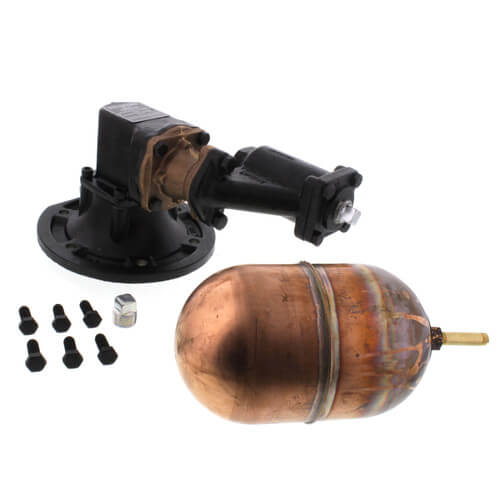

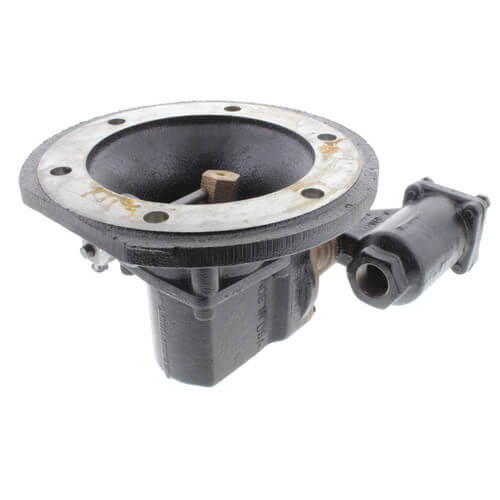

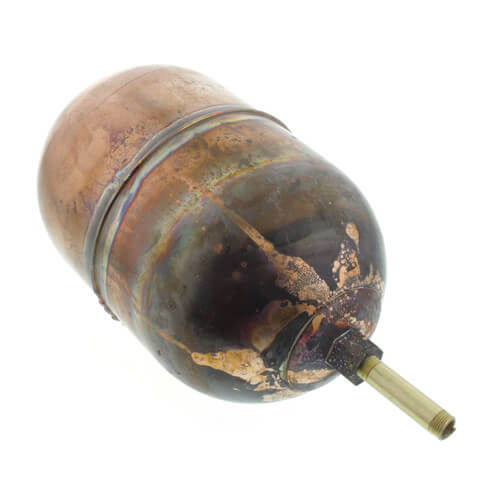

21, Make-Up Water Feeder
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
150 MAX PSI
17.4375" Width
11.8125"
5-3/4" Bolt Circle
3/4"
Threaded Connection
Description
–
- For boiler receiver tanks
- Direct mounting eliminates need for equalizing connections
- Proportional feed action
- Mounting Flange v six 7/16" (11.1mm) bolt holes on a 5-3/4" (146mm) bolt circle
- Soft seat provides positive seal
- Maximum water supply pressure 150 psi (10.5 kg/cm2)
- Maximum inlet water temperature 120¦F (49¦C)
- Maximum vessel pressure 35 psi (2.5 kg/cm2)
Specs
–
| Application: | Boiler Receiver Tanks |
|---|---|
| Type: | Make-Up |
| Max Pressure (PSI): | 150 |
| Max Vessel Pressure: | 35 psi |
| Max Inlet Water Temp (F): | 120°F |
| Width (Inches): | 17.4375" |
| Height: | 11.8125" |
| Mount: | 5-3/4" Bolt Circle |
| Bolt Hole Size: | 7/16" |
| Size: | 3/4" |
| Connection Type: | Threaded |
