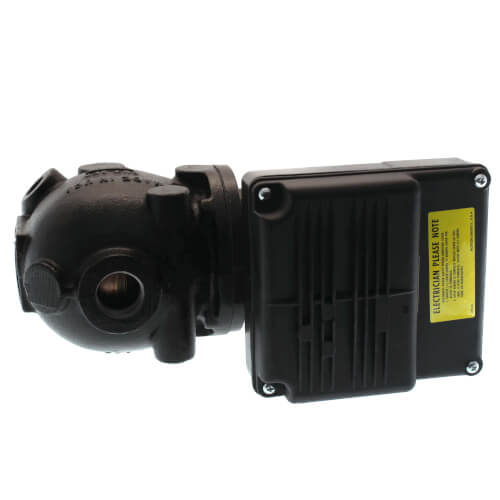

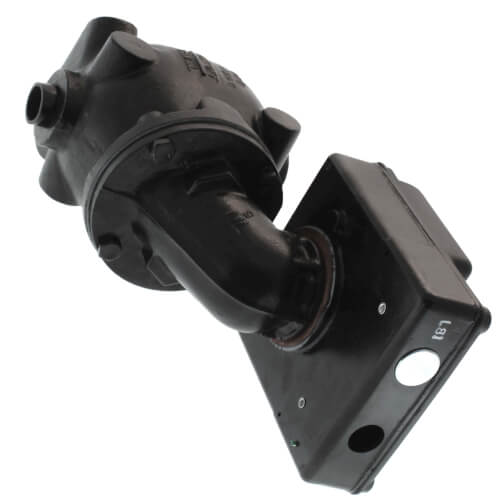

Main product image of 42S, Combo Low Water Cut-Off - Pump Controller (Steam)
Magnifying glass
Hover image to zoom

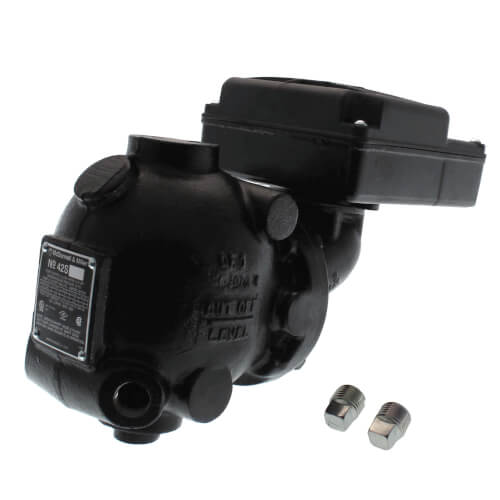

42S, Combo Low Water Cut-Off - Pump Controller (Steam)

Brand:
McDonnell & Miller
SKU:
129302
Rating:
(0)
Q&A:
(0)
42S, Combo Low Water Cut-Off - Pump Controller (Steam)
Magnifying glass
Hover image to zoom
$948.57 each
In Stock
In Stock
Get 10 Mon, Jun 15
This item replaces: 42S
Replacement Parts
View All
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Max Pressure (PSI)
50 MAX PSI
Product Highlight: Connection Type
Threaded Connection

Description

–

  • For residential, commercial, and industrial low and medium pressure steam boilers with a separate water column
  • For boilers of any steaming capacity
  • Monel bellows provides corrosion resistance
  • Single pole, single throw mercury switches
  • Enclosed junction box protects switches
  • Optional features
    - Quick hook-up fittings
    - Gauge glass connector
    - BSPT threads
  • Maximum pressure 50 psi (3.5 kg/cm2)

    • Specs

    –
    Application:

    Steam Boilers

    Switch:

    SPST

    Max Pressure (PSI):

    50

    Type:

    Combo

    Reset Type:

    Automatic

    Thread Size:

    1"

    Connection Type:

    Threaded

    Electrical Ratings (AFL):

    7.4 A @ 120 Vac

    3.7 A @ 240 VAC

    Electrical Ratings (ALR):

    44.4 A @ 120 Vac

    22.2 A @ 240 VAC

    Pilot Duty Rating:

    345 VA
