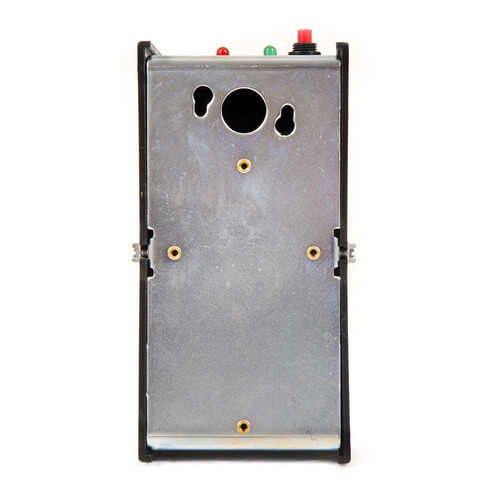

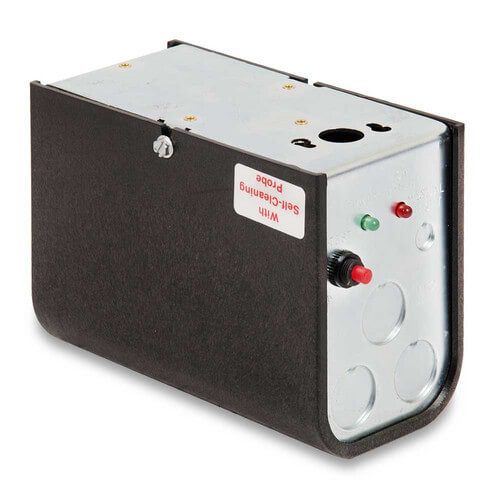

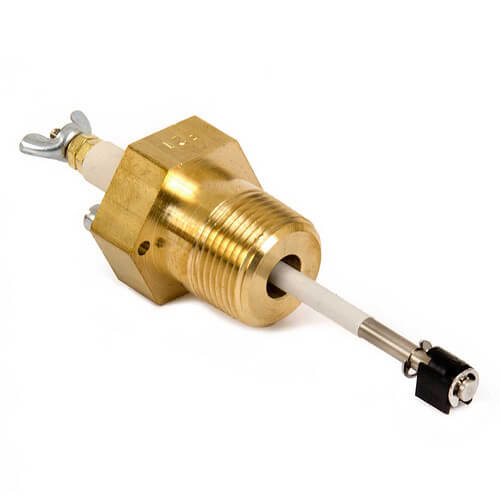

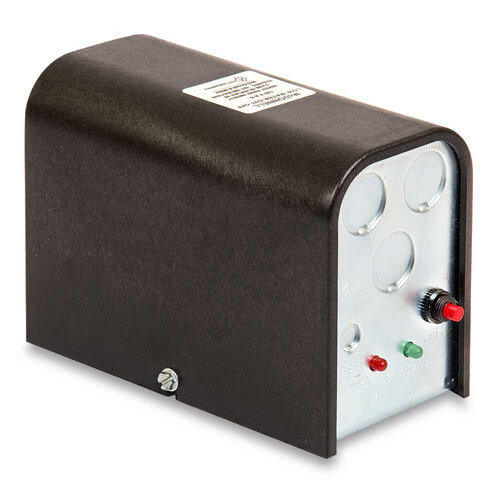

Main product image of PS-801-120, Electronic, 120V Low Water Cut-Off (Steam)

Hover image to zoom

PS-801-120, Electronic, 120V Low Water Cut-Off (Steam)

Name: PS-801-120, Electronic, 120V Low Water Cut-Off (Steam)
Brand: McDonnell & Miller
SKU: 153875
Price: 129.95 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Brand:

McDonnell & Miller

SKU:

153875

Rating:

(1)

Q&A:

(0)

PS-801-120, Electronic, 120V Low Water Cut-Off (Steam)

Hover image to zoom

153875 has been discontinued

Discontinued September 11, 2013

This product was discontinued by the manufacturer.

MANUALS (2)

This item replaces: PS-801-120

Suggested Alternative:

FPC-1000-P, boilerwize Electronic Low Water Cut-Off w/ Probe, 24V/120V, Auto/Manual (Steam/Water)

Brand:

McDonnell & Miller

SKU:144705

(2)

Order by today, receive 12 by Tuesday

VIEW ALTERNATIVE

Product Highlights

–

15 (Steam) MAX PSI

250°F Max Temp

120v

Description

–

Low Water Cut-Off v Electronic For Steam Boilers
Series PS-800

For residential and commercial applications
Electronic operation
User-friendly diagnostics

Higher probe sensitivity: 7,000 ohms
No lock out with loss of power if probe is in water
Delay on Make (DOM) feature (15 seconds)
Delay on Break (DOB) feature (10 seconds)
No blow down of control required when mounted directly into boiler tappings
Test button standard on all models
Options available include

Power consumption 1.7 VA
Provisions to add alarm or automatic water feeder
Maximum ambient temperature 120F (49C)
Maximum steam pressure 15 psi (1 kg/cm2)
Maximum water temperature 250F (121C)

Specs

–

Application:	Steam Boilers
Type:	Electronic
Reset Type:	Automatic
Max Pressure (PSI):	15 (Steam)
Max Temp (F):	250°F
Voltage:	120v
Sensitivity:	7000 ohms
Delay on Make Timer:	15 seconds
Delay on Break Timer:	10 seconds
Max Ambient Temp (°F):	120°F
