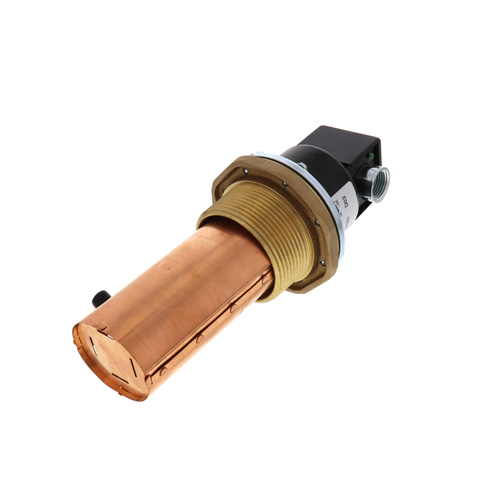

69, Float Type Low Water Cut-off, 4-1/8" Insertion (Steam)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$364.30 each
In Stock
Get 12 Thu, Jan 23
More Available
Order by today, receive Thursday
MANUALS (3)
This item replaces: 69
'/%3E%3C/svg%3E){kind=small}
Replacement Parts
View AllFree Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 (Steam) MAX PSI
2-1/2" NPT Boiler Side Tappings
4-1/8" Diameter
9-1/2"
Threaded Connection
Description
–
Specifications
- For boilers of any steaming capacity
- For mounting in 2-1/2" NPT boiler side tappings
- Insertion lengths available in 1316 - 41/8" (30-105mm)
- Packless bellows
- Adjustable BX outlet for easy installation
- Dual precision switches for dependable operation of the low water cut-off and an alarm or electric water feeder<
- Optional low voltage switches for self-generating millivolt circuits
- Maximum steam pressure 20 psi (1.4 kg/cm2)
- For residential and commercial low pressure steam boiler applications
Specs
–
| Application: | Steam Boilers |
|---|---|
| Switch: | Dual Precision Switches |
| Max Pressure (PSI): | 20 (Steam) |
| Type: | Float-Style |
| Insertion Length: | 4-1/8" |
| Reset Type: | Automatic |
| Mount: | 2-1/2" NPT Boiler Side Tappings |
| Electrical Ratings (ALR): | 22.2 A @ 240 VAC 44.4 A @ 120 VAC |
| Electrical Ratings (AFL): | 3.7 A @ 240 VAC 7.4 A @ 120 VAC |
| Pilot Duty Rating: | 125 VA |
| Diameter (Inches): | 4-1/8" |
| Length: | 9-1/2" |
| Connection Type: | Threaded |
| Thread Size: | 2-1/2" |
