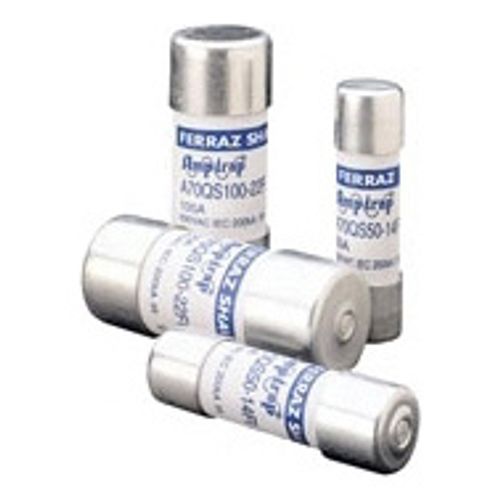

Lead-Free French Cylindrical Fuse, 690 VAC/700 VDC, 63A, High Speed, A70QS63-22F
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$55.98 each
In Stock
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
700V, 690v
63 Amps
Description
–
The Mersen Electrical Power A70QS63-22F is a Semiconductor, Rectifier, High Voltage Fuses. It has a current rating of 63 Ampere, interrupting rating of 200 Kiloampere (AC), 100 Kiloampere (DC).
Features:
Features:
- Characteristics High Speed
- Voltage Rating 690 VAC, 700 VDC
- Current Rating 63 Ampere
- Interrupting Rating 200 Kiloampere (AC), 100 Kiloampere (DC)
- Terminal Type Ferrule
- Designated Size 22 x 58
- Size 22 MM Dia x 58 MM L
- Approval UL, CSA, IEC
- Body Style Cylindrical, Non-Rejection
- Material Ceramic
- Mounting Type Clip
- Application Small Inverters, UPS Systems, Solid State Relays, Motor Drives and Similar 700 V or Less Equipment
- These Premium Amp-Trap French Cylindrical Semiconductor Fuses Are an Extension of the Popular A70QS Product Line
- International 14 x 51 MM and 22 x 58 MM Sizes for Worldwide Acceptance
- Ferrule Mount Upto 100A for Design Versatility
- Very Low Copper Loss for Improved Semiconductor Protection
- Superior Cycling Ability for Longer Life on Difficult Cyclic Loading Applications
Specs
–
| Voltage: | 700V 690v |
|---|---|
| Product Type: | Fuse |
| Amperage: | 63 |
