Our M12™ Pipeline Locator provides the most intuitive plumbing locating experience, simplifying the process of pinpointing sewer camera sondes and tracing underground sewer lines. A directional arrow appears on screen upon startup, immediately pointing in the direction of the sonde and eliminating the need to guess and check which direction to start. Once in range, a sonde icon appears on screen, confirming the exact location of the sonde. Dual 3D antennas eliminate false peaks and increase both sensitivity and precision, making it easier to locate than ever before. Featuring a 4.3" color LCD display, the locator simplifies navigation and provides a clear on-screen image even in direct sunlight. The locator is IP 65 rated for durability in harsh, outdoor working environments. Powered by M12™ REDLITHIUM batteries, the M12™ Pipeline Locator delivers all-day runtime on a single charge. The locator is equipped with ONE KEY™ tracking, security, and inventory management to protect your investment.

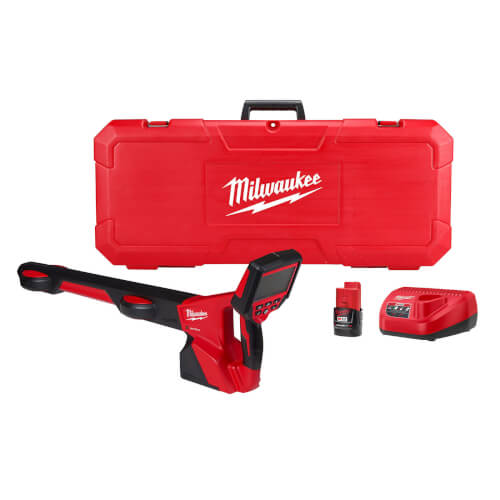

  • (1)M12™ Pipeline Locator Kit(2580-21)
  • (1)M12™ REDLITHIUM™ CP1.5 Battery Pack(48-11-2401)
  • (1)M12™ Lithium-ion Battery Charger (48-59-2401)

    • Directional Icons Eliminate Guess & Check
    • Read Signals Clearly on 4.3" LCD Display
    • 360 Degree Guidance Arrow provides Fast, Accurate Guidance Upon Start Up
    • On-Screen Sonde Icon Confirms Sonde’s Exact Location
    • Line Trace Mode: Compass Icon Follows Energized Line
    • Two 3D Antennas for precise locating
    • Onboard Controls: Quickly Switch between locating modes
    • Calibration Test Monitors Tool’s Accuracy
    • Daylight Readable Screen for Optimal Outdoor Viewing
    • IP65 Rated: Survives Harsh Jobsite Conditions
    • One-Key™ Tracking, Security, & Inventory Management

    • Display Type: 4.3" Color LCD Display
    • Sonde Frequencies: 512 HZ, 640 Hz, 33 KHz
    • Line Trace Frequency: 33kHz, 83kHz
    • Power Frequency: 50Hz, 60Hz
    • Radio Frequency: 10kHz - 22.7kHz Bandwidth
    • Voltage: 12V
    • Battery Type: M12™
Hide Description


Product Type:


Power Source:


Batteries Included:


Battery Type:

M12 Lithium-Ion Battery
