Description
Overview

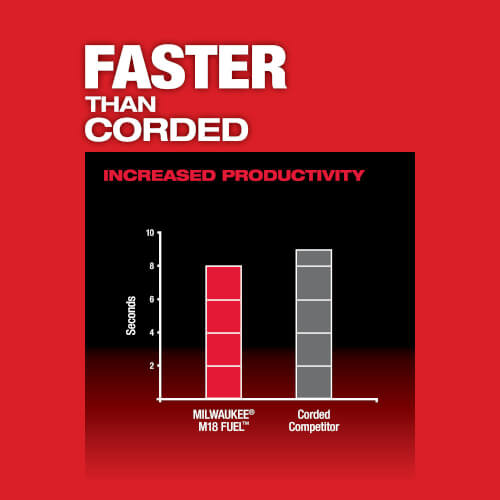

Designed for the unique environments that Linemen work in, the M18™ FUEL 1-1/2” Lineman Magnetic Drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4” steel providing a safer drilling environment in this material, and drills over (40) 13/16” holes per charge. The M18 FUEL™ 1-1/2” Lineman Magnetic Drill delivers safer drilling on ¼” steel by providing the industry’s strongest holding force on this material. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with Auto-Stop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a Milwaukee POWERSTATE™ Brushless Motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2” annular cutter capacity. REDLINK PLUS™ Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. REDLITHIUM™ XC5.0 batteries provide over (40) 13/16” holes in ¼” steel, while delivering the most durable pack construction on the market, and over 2X more recharges than the leading competitor.

Features
  • POWERSTATE™ Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
  • REDLINK PLUS™ Intelligence Provides optimized performance and overload protection using total system communication between tool, battery and charger.
  • Self-Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force
  • 1-1/2" Annular Cutter Capacity 1/2" Twist Bit Capacity
  • 2 Speed Gear Box: 400/690 RPM
  • Stroke Length: 5-3/4"
  • Motor Head Adjustment: 5-1/8"

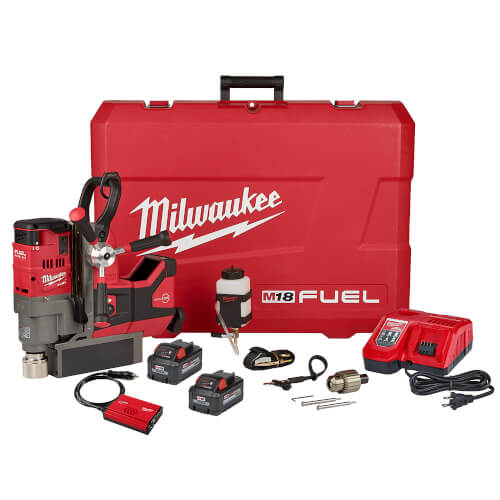

Includes:
  • M18 FUEL™ 1-1/2" Lineman Magnetic Drill
  • (2) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack (48-11-1850)
  • (2) 1” Retractable Pilot Pin
  • Safety Strap
  • Magnetic Lubrication Tank
  • Carrying Case
  • Chuck Key
  • AC/DC Vehicle Charger
  • 3/4” Weldon to 1/2” Chuck adapter
Hide Description
Manuals (2)

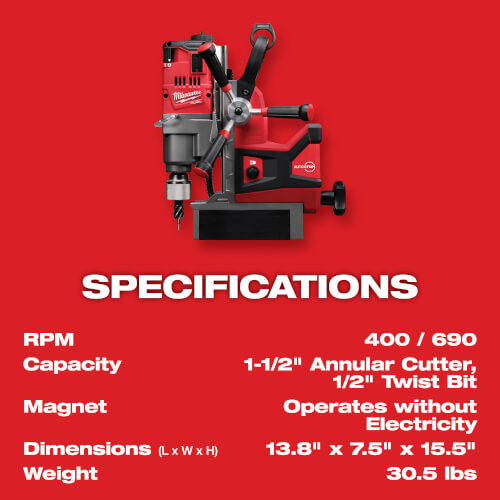

Specs
Voltage:

18v

Product Type:

Lineman Drill

RPM:

700

Chuck Size:

1-1/2"

Chuck Type:

Keyed

Power Source:

Battery

Battery Type:

M18 Lithium-Ion Battery

Batteries Included:

2

Includes:

Carry Case

18V LITHIUM-ION Battery

Charger

Length (Inches):

7-1/2"

Width (Inches):

13-3/4"

Height (Inches):

15.5"

Warranty:

5 Year Tool/3 Year Battery

×
