M18 FORCE LOGIC 12T Latched Linear Crimper

Overview
The M18 FORCE LOGIC 12T Latched Linear Crimper is The Fastest Way To Crimp. Equipped with fully enclosed high-speed hydraulics, a POWERSTATE Brushless Motor, REDLINK Electronics, and REDLITHIUM Batteries, the crimp tool provides the fastest crimp speed and unmatched reliability in the toughest conditions. The linear crimper is designed to allow one-handed use in multiple orientations. An enlarged trigger and electronic release button enable both left and right-handed users to easily activate the tool while wearing Class 3 gloves. The head of the crimper rotates 340° and the quick release and push-to-close style latch pin can be easily opened or secured with just one touch. Predictive Force Monitoring (PFM) constantly measures output force to deliver the fastest crimp speeds across all connector types and sizes and ensures full pressure is reached every time. A pre-crimp battery check confirms that the battery has enough charge to complete a full crimp. Full compatibility with all industry-standard U-dies allows you to use the dies already on your truck. Our crimper creates UL Classified crimps per UL 486A-B on #8 - 750 MCM Copper and Dual Rated Anderson, Blackburn, Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts color-coded lugs and splices when using our EXACT 12T U-Dies. Our crimper is integrated with our ONE KEY Technology, giving the crimper the ability to store real-time crimp data.

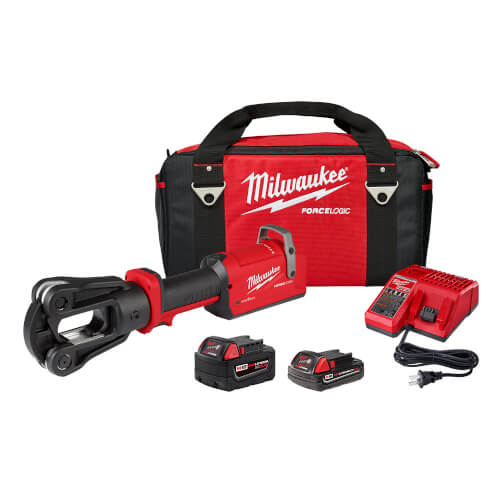

Includes

• (1) M18 FORCE LOGIC 12T Latched Linear Crimper(2878-22)
• (2) M18 REDLITHIUM CP2.0 Battery(48-11-1820)
• (1) M18 REDLITHIUM XC5.0 Extended Capacity Battery Pack(48-11-1850)
• (1) M18 & M12 Multi-Voltage Charger(48-59-1812)
• (1) Overhead Crimper Utility Bag

Product Features

• Lightest, most balanced inline design delivers maximum control
• PREDICTIVE FORCE MONITORING (PFM) ensures full pressure
• Fastest 12T crimper
• Inline design & 340 degrees rotating head provides easy access in tight spaces
• Quick release and push-to-close pin design provides easy access around splices
• Compatible with all industry standard U-dies
• Creates UL Classified crimps under UL 486A-B for #8 - 750 MCM Cu and Dual Rated lugs and splices across several leading manufacturers when used with corresponding Milwaukee dies
• Pre-crimp battery check automatically ensures enough charge to complete each crimp
• Instant verification of successful cycle with green LED
• Hydraulic system optimized for consistent performance from -4° to 140° F
• Longer life with POWERSTATE brushless motor & weather protected electronics that keep dirt, dust & moisture out
• Records & stores every crimp made for professional report building through ONE KEY
• Compatible with the entire M18 System

Product Specifications

• Voltage: 18V
• Battery Type: 18 Volt Lithium Ion
• Tool Warranty: 5 Year Tool, 3 Year XC Battery, 2 Year CP Battery
• Power Source: Cordless
• Motor Type: Brushless
• Length: 21.3 in
• Weight: 14.25 lb
• Height: 5.8 in
• Width: 3.25 in
• Brushless: Yes
• Battery System: M18
