The M18™ 325’ Stiff Pipeline Inspection System delivers the clearest image, easiest inspections for 3"-10” sewer lines, perfect for long runs with few turns. Featuring the industry’s shortest 34 mm 1080p HD self-leveling camera head, and the ability to digitally zoom up to 4X and pan, technicians can now see more in drain lines than ever before. This system features a telescoping handle and wide wheelbase making transportation on and off the jobsite easier than ever. Powered by M18™ REDLITHIUM™ 5.0 batteries, the M18™ 500GB Control Hub powers the reels, stores recordings, and easily swaps between reel sizes delivering unmatched system versatility. Capture, create, and share custom photos and videos from the M18™ Wireless Monitor or directly from a tablet or mobile device for faster sharing of findings. This sewer line camera is also equipped with ONE-KEY™ Technology, providing you with the ability to track the tool's location, manage it in inventory, and lock the tool out to help protect your investment.

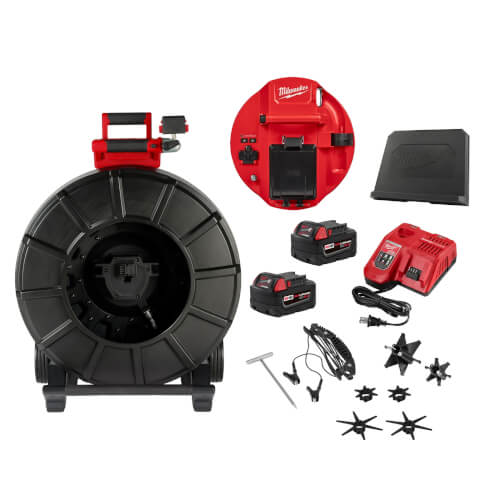

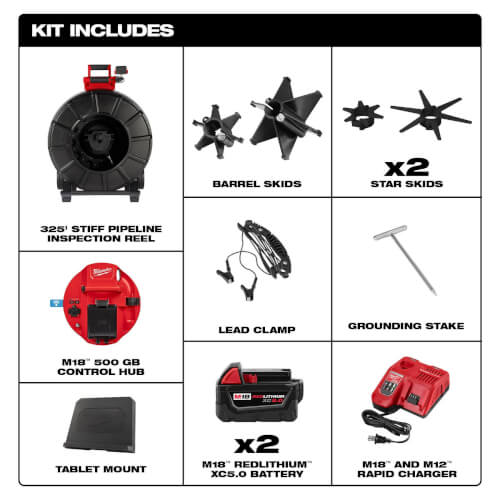

Includes

• (1) M18™ 325' Stiff Pipeline Inspection Reel(2976-20)
• (1) M18™ 500GB Control Hub (Tool-Only)(2970-20)
• (1) Milwaukee® Tablet Mount(48-53-2970)
• (2) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack(48-11-1850)
• (1) M18™ & M12™ Rapid Charger(48-59-1808)
• (1) Small Camera Skid
• (1) Medium Camera Skids
• (4) Star Skids
• (1) Grounding Stake
• (1) Lead Clamp

Product Features

• 1080p camera resolution providing the industry's clearest image inside of drain lines

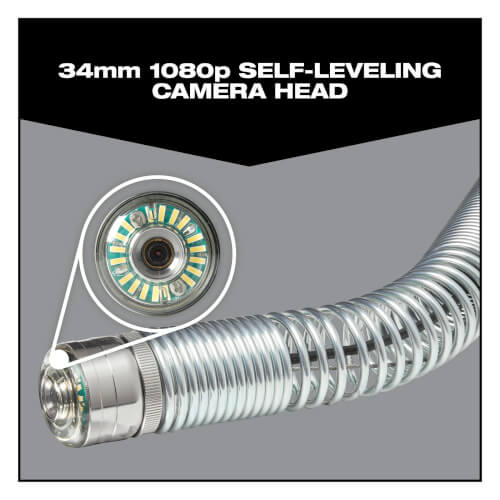

• 34 mm self-leveling HD camera head with Sapphire Crystal lens
• 325' 12 mm Push Cable provides best mix of stiffness, flexibility and length.

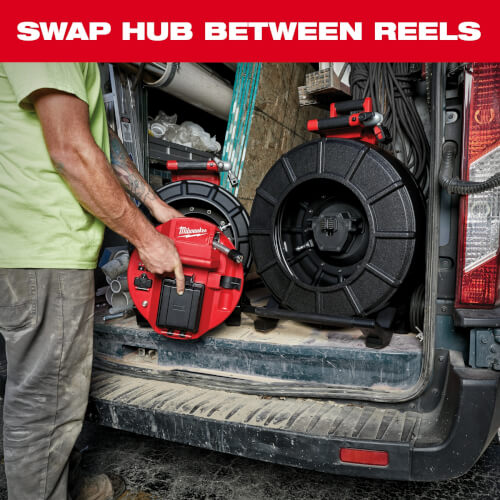

• Powered by the M18™ 500GB Control Hub
• Telescoping handle and wide wheelbase provide maximum stability
• Onboard monitor mount for viewing and transportation
• Swap batteries without system shutdown
• Up to 200' of wireless connectivity
• Onboard USB port allows for saving findings on memory stick
• One-Key™ technology allows for tracking, tool security, and inventory management
• Up to 9 hours of runtime with an M18™ Red Lithium™ 5.0AH Battery
• Wired connection backup to the M18 Wireless Monitor via USB-C port
• Watertight battery door protects against water and debris
• Integrated handle and latch allow for easy one-handed installation

Product Specifications

• Tool Warranty: 5 Year (Tool), 3 Years (Battery)
• Length: 16 in
• Weight: 69 lb
• Height: 30 in
• Width: 23.6 in

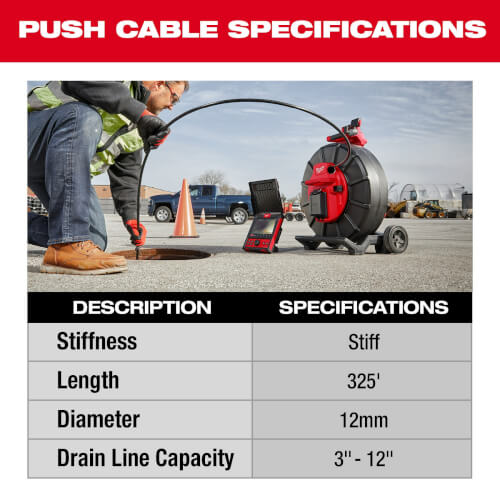

• Push Cable Stiffness: Stiff
• Push Cable Length: 325'
• Drain Line Capacity: 3"-12"
• Push Cable Diameter: 12mm
• Camera Resolution: 1080p
• Camera Head Ingress Protection: IP67
• Sonde Frequency: 512Hz, 640Hz, 33kHz
• Line Trade Frequency: 33kHz, 83kHz

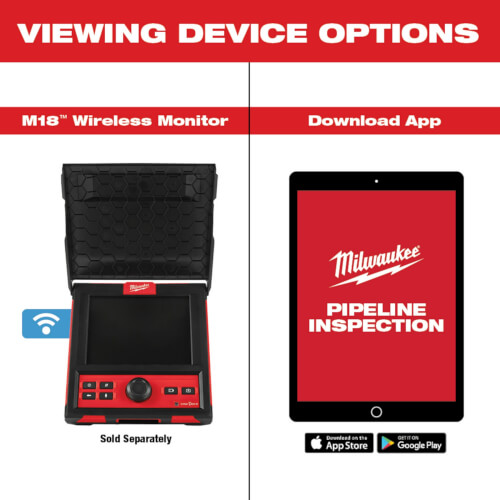

• Video Display: M18™ Wireless Monitor or MILWAUKEE® Pipeline Inspection App
• Camera Head Warranty: 1 Year
• Wireless Range: 200 Feet
• Runtime: 9 hours
• Photo Format: JPEG
• Video Format: MPEG4
• Internal Storage: 500GB
• Data Transfer Method: USB, wireless to mobile devices
• Line Trace Frequency: 33 kHz, 83kHz
