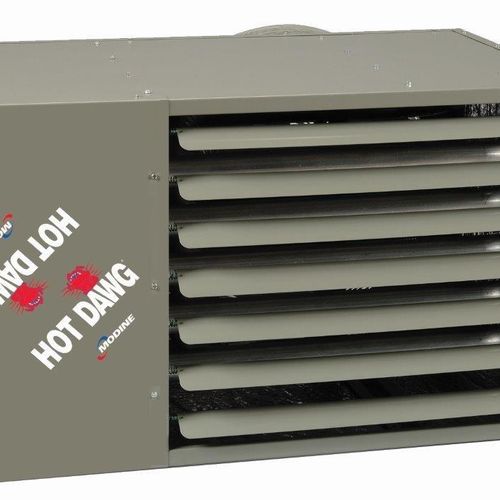

Main product image of HD30 Hot Dawg Natural Gas Power Vented Heater (30,000 BTU)
Magnifying glass
Hover image to zoom

HD30 Hot Dawg Natural Gas Power Vented Heater (30,000 BTU)

Brand:
Modine
SKU:
HD30AS0111
Rating:
(0)
Q&A:
(1)
HD30 Hot Dawg Natural Gas Power Vented Heater (30,000 BTU)
Magnifying glass
Hover image to zoom
HD30AS0111 has been discontinued
Discontinued September 16, 2020
This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.
This item replaces: HD30AS0111FBAB
Replacement Parts
View All
Direct Replacement:
HD30 Hot Dawg Natural Gas Power Vented Heater (30,000 BTU)
Brand:
Modine
SKU:HD30AS0111FDAN
(0)
VIEW REPLACEMENT
VIEW REPLACEMENT

Product Highlights

–
Product Highlight: BTU Output
24000 Max BTUs
Product Highlight: Fuel Type
Natural Gas
Product Highlight: Stages
1
Product Highlight: BTU Input
30000 BTUs
Product Highlight: Horse Power
1/15 HP

Description

–
HD30 Power Vented Propeller Overview:
  • Tubular Power Vented Propeller
  • 30,000 BTU/hr input
  • Application: 1 to 1-1/2 Car Garage
  • Heat Exchanger: Aluminum
  • Direct Spark Ignition
  • 115V, 60 hertz, single phase
  • Single Stage, Natural Gas
HOT DAWG POWER-EXHAUSTED, GAS-FIRED UNIT HEATER (MODEL HD)
  • Hush-puppy quiet operation (see table)
  • Right or left hand controls available on all 30-75 units. Gas, electrical and flue connections can be changed by simply flipping the Hot Dawg over
  • Uses natural or propane gas
  • Lightweight, easily installs 1" from ceiling with only two angle brackets (included on sizes 30-75, accessory for 100, 125)
  • Full 10-year warranty on heat exchanger
  • Standard power exhaust simplifies side-wall or roof venting with small-diameter vent pipe
  • Permanently-lubricated motor for trouble-free dependability
  • single stage, direct spark ignition, 100% shut-off with continuous retry
  • Low-profile design and neutral color to blend in with decor
  • Also available with a blower (model HDB).
**Image may not depict actual product.**

Specs

–
Type:

Unit Heater

Stages:

1

Fuel Type:

Natural Gas

BTU Input:

30000

BTU Output:

24000

Horse Power:

1/15

Entering Airflow (CFM) @ 70°F:

505

Air Temp. Rise (°F):

44°F

Max Mounting Height (ft):

10 feet

Contact

Help Face
CALL US
Question? Call or text 888-757-4774
+
Help Face

Questions?

Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Open Now:
8:00am–7:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Response by Mon

QUICK SUPPORT

Order StatusShipping PolicyReturnsIs My Item in Stock?Request Item for Site

1 Replacement Part

NG to LP Kit for HD30AS0111, HDS60AS0111 & HD45AS0111, 53079
SKU: 53079
Modine
Help Image
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM

Product Q&A

1 Question
1 Question
ASK A QUESTION

Q: Can you mount it closer to the flior

Asked by Cyn 8 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- Supply House Staff

Do not install units below 7' measured from the bottom of the unit to the floor in commercial applications (unless unit is properly guarded to provide user protection from moving parts) and 5' measured from the bottom of the unit to the floor in residential applications. For more detail on mounting, take a look at page 5 of the install: https://s3.amazonaws.com/s3.supplyhouse.com/product_files/Hot-Dawg-Install.pdf
