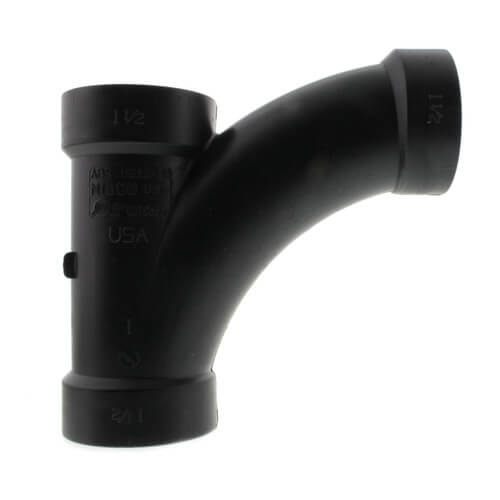

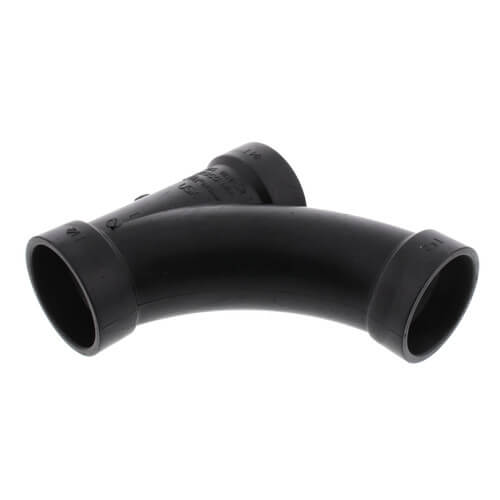

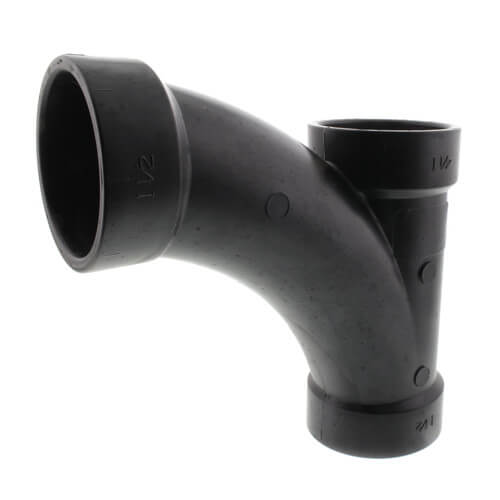

1-1/2" H x H x H ABS Long Radius Combination Tee-Wye (5812LR)
The Nibco ABS DWV long radius combination tee-wye is used in residential and commercial drain, waste and vent systems.
The ABS DWV long radius combination tee-wye features a hub x hub x hub connection. The tee-wye allows for a connection to be made in continuous pipe line and branch out to a different direction. Please refer to Nibco technical data sheets and catalogs for engineering and installation information. Acrylonitrile-Butadiene-Styrene (ABS) is resistant to a wide variety of materials ranging from sewage to commercial household chemical formulations and can be exposed to a wide temperature span. ABS is lightweight, safe to handle and easy to install. ABS DWV is joined by solvent cementing or threading and can easily be connected to steel, copper, or cast iron through the use of transition fittings. Nibco plastic fittings are backed by a 5-year limited warranty.
- Service temperature -40°F to 180°F
- Do not test or use with compressed air or other gases
- CSA B181.1
- ASTM D2665
- ASTM D3965
- ASTM D2661 and D3311
- UL Listed 94V-0
- NSF/ANSI Standard 14
- NSF U.P. Certified
