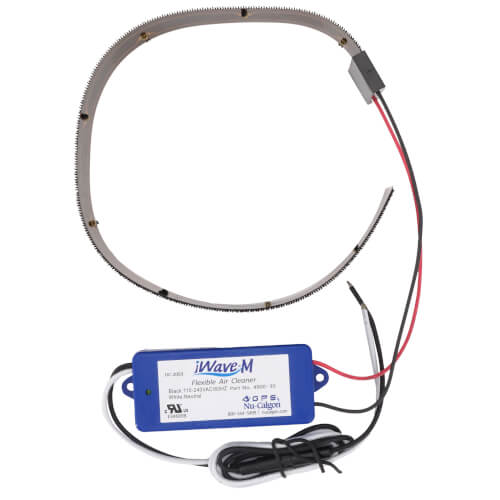

iWave-M Air Purifier

Overview:
iWave-M is a flexible ion-generating bar that can treat IAQ in nearly any HVAC application. The air purifier provides the highest level of ionization energy in the most compact size available in the market, producing 240 million ions/cc per foot of flexible ribbon. The highly versatile iWave-M is low maintenance with no replacement parts. As the air flows past the iWave-M, the device emits positive and negative ions, creating a plasma region that purifies the air, killing mold, bacteria and viruses in the coil and living space. The ionization process also reduces allergens, smoke and static electricity, as well as controlling odors (cooking, pet, VOCs) and other particles (no more sunbeams) in the air without creating ozone or any harmful byproducts.

iWave-M’s revolutionary circuit bar with special integrated ion-generating needles fits any HVAC cooling coil up to 36" wide and up to 1200CFM. The circuit bar is chemical resistant and highly durable for long service life. Plus, it can be folded to length in the field to any size and uses hook and loop fastener material for the flexible bar and power pack for easy installation. It is perfect for ductless HVAC systems – specifically mini-splits, commercial VRF coils, PTAC systems – plus residential and commercial duct systems, packaged systems, transport cooling coils or even in ice machines. The iWave-M is the most versatile and novel product on the market to address air quality for any HVAC system, in particular to solve mold issues common in hard-to-clean ductless systems.

Specifications:

• Input Voltage: 110VAC to 240VAC
• Power (VA): 5 Watts
• Frequency: 50/60 HZ
• Output Voltage: 5 KV
• Power Supply Dimensions: 2.0" W x 1.0" H x 3.0" L
• Flexible Bar Dimensions: 1.25" W x 0.05" H x 36" L
• Power Supply Weight: 0.5 lb.
• Electrical Approvals: UL and cUL approved
• Service Temp. Range: -40ºF to 160ºF
