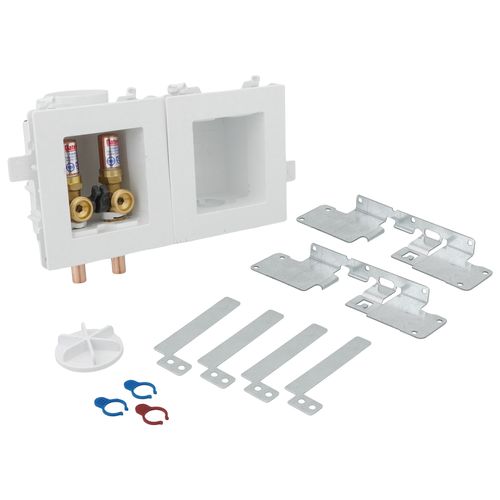

MODA Fire Rated Sweat Washing Machine Outlet Box w/ Water Hammer Arrestor, 1/4 Turn, Standard Pack

Note: This item cannot be installed inverted.

Flexible and versatile plumbing products are essential on the job site. That’s why Oatey created the MODA Modular Supply Box System, a new, innovative outlet box for water supply and drainage connections. The latest innovation from Oatey combines the best features of traditional supply boxes in one, multi-purpose system. With MODA box, residential and commercial plumbers save time and frustration on supply box installations by having a single-box solution for washing machines, dishwashers, ice makers, kitchens and air admittance valves. A single-box system for plumbing contractors MODA box makes supply box installation fast and easy with multiple mounting configurations and fitting options, as well as a sleek, compact design.

Features:

• Single box platform provides significant convenience to installers
• One universal faceplate is compatible with all box types
• All boxes can snap to one another, and common brackets can be used on any MODA supply box
• Unique interlocking wing flanges accommodate on-stud, straddle-stud and three-box installations
• Advanced snap-lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
• Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
• Dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms
• Plumber-preferred, quarterturn test plug with gasket provided with every drain box, so no knock outs falling into drains and no tools required: an Oatey Exclusive feature
• Stands up to the roughest job site abuse, and no transition cement needed when solvent welding PVC pipe
• Two piece valve design makes valve replacement easy to repair, without damaging drywall
• Valves rated to 150 PSI air and 250 PSI water
• Universal single box platform provides maximum versatility, installation simplicity and rugged reliability and is now Fire-Rated
• MODA Fire-Rated supply boxes come with metal brackets to provide additional support and hold in place under extreme temperatures
• The intumescent pad is activated by heat and designed to expand, protecting the back of the supply box under extreme heat
• Modular, flexible design
• Meets requirements of ASTM E814 (2013a) “Standard Test Method for Fire Tests of Through-Penetration Fire Stops” and CAN/ULC S115

Specifications:

• Inlet Type: Sweat
• Includes Water Hammer Arrestor

Note: Image may not reflect actual item.
