Description

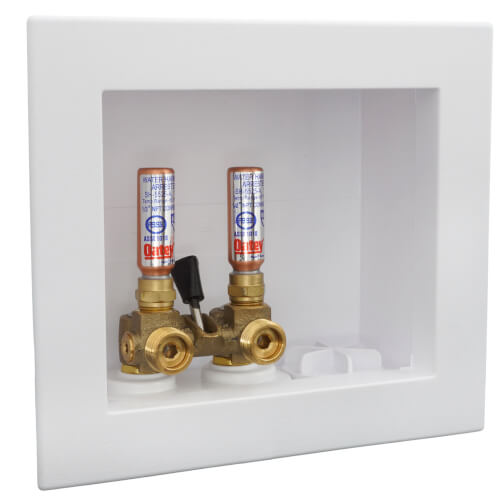

Oatey QUADTRO washing machine outlet boxes can be used in commercial or residential applications which require supply valves and waste drains recessed into the wall. The available water hammer arrestor option provides water pressure shock arrestors required for installation
on supply lines to quick closing valves. Easy to remove knockout.
Features:
Specifications:
Features:
- 2" drain opening fits PVC or ABS Schedule 40 DWV pipe
- Easy to remove knockout, Patent Pending Hammer Valves
- Snap-on Faceplate Frame accommodates up to 1" drywall
- Box made of high impact polystyrene
- Top or Bottom Valve Mount
- 4 support brackets included for mounting
- Patented, versatile design allows for right, left, or center drain and bottom or top mount valves
- InLock and load-in valve mounting system for quick and easy positioning
- Unique, easily installed and removed test cap that does not fall into drain
Specifications:
- Box Material: Plastic
- Connection Type: Copper Sweat
- Depth: 3-5/8"
- Height: 7-1/2"
- Width: 8-3/4"
- Box Dimensions: 8-3/4"W x 7-1/2"H x 3-5/8"D
- Faceplate Dimensions: 11-3/4"W x 10-1/8"H
