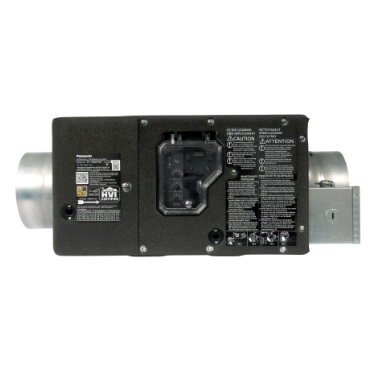

WhisperFresh Select Fresh Air Supply Fan, 50-150 CFM, ENERGY STAR Certified (Hardwire Model)

WhisperFresh Select is the ultimate supply air fan. Built-in Pick-A-Flow airflow selector switch allows you to select your required airflow (50-150 CFM). Features an ECM Motor with SmartFlow technology for CFM output to achieve precision whole-house supply ventilation. WhisperFresh Select can be used to comply with the latest codes and standards including ASHRAE 62.2, LEED and CA Title 24.

Product Features

• Customizable fresh air supply fan featuring Pick-A-Flow technology- one fan, you choose the CFM (50-60-70-80-90-100-110-130-150 in CFM; 9 settings)
• Intelligent ECM motor with SmartFlow technology provides optimum CFM output for precision whole-house supply ventilation
• Operates as a stand-alone filtered supply fresh air solution to meet ASHRAE 62.2 requirements for make-up/supply air
• Capable of communicating with Panasonic's acclaimed WhisperGreen Select to create a balanced ventilation solution
• Incorporates adjustable high humidity and low temperature dials for easy adjustments in any climate zone
• Upgraded Junction box on hardwired models has 2 convenient knockouts for routing power
• Pressure ports for airflow verification
• Built-in Plug 'n play module port with smart home capability
• CFM - Can be selected for 50/60/70/80/90/100/110/130/150 CFM (9 settings).
• Humidity Setting - Customized fresh air supply based on humidity conditions of incoming air. Fan will automatically shut off (or not turn on) when the outside relative humidity is higher than the setting on the humidity dial (from 30% to 80% RH).
• Temperature Setting - Customized low temperature setting will shut fan off when incoming supply air is too cold. Fan will turn off (or not turn on) when the outside temperature is lower than the setting value. (From 15°F to 4°F). Fan automatically stops operating when the incoming air is higher than 95°F.
• WhisperFresh Select can be used in conjunction with the Select Cycler system to create a wired, measurable whole-house ventilation solution. WhisperFresh Select can be used to create slight positive pressure within the home instead of using a Central HVAC. Additionally, this supply fan can also be used with ductless HVAC solutions to provide an excellent fresh air solution. Customers may use WhisperFresh Select as a re-circulation filtration device in the home if preferred. As a great bonus installation delivers flexibility, and it can be mounted in new and retrofit construction or as a retrofit.
