Description

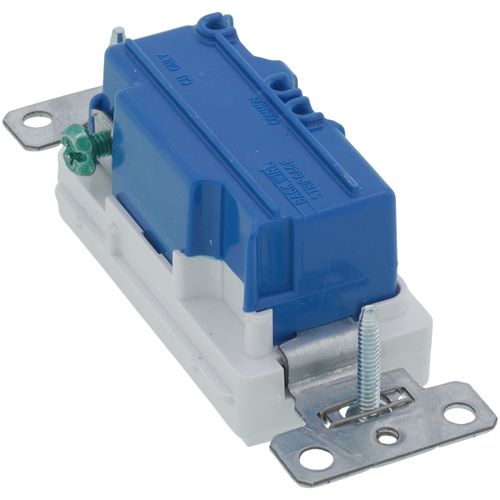

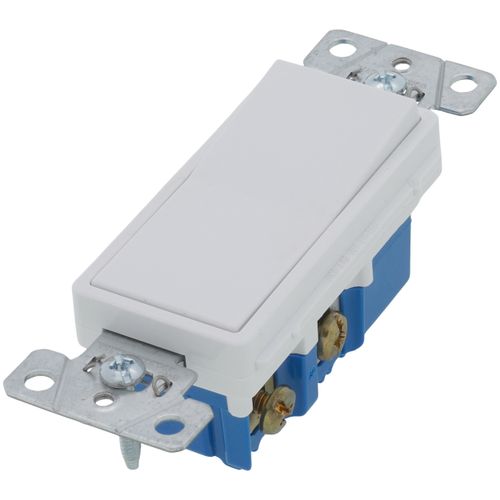

1p Specification Grade Switch - 15A White (120/277V)

Product Features
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
Product Specifications
  • Color: White
  • Country Of Origin: Mexico
  • Product Line: Pass & Seymour
  • Application Sector: Industrial
  • Standard: UL 20
  • Wattage: 1 W
  • Voltage: 120 V
  • Contact Rating: 15amp, 120/277vac
Hide Description
Specs
Product Type:

Switch

Voltage:

120v

277v

Poles:

1

Color:

White

Application:

Industrial

Amperage:

15

×
