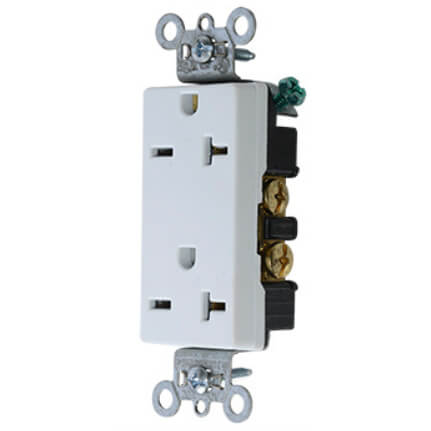

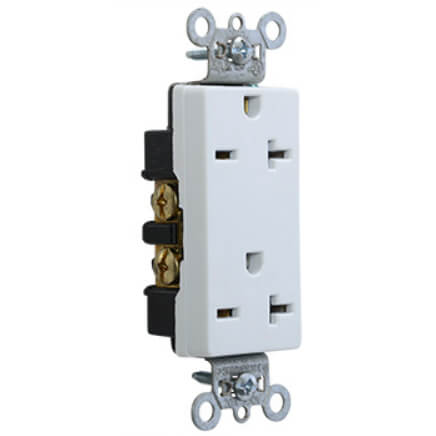

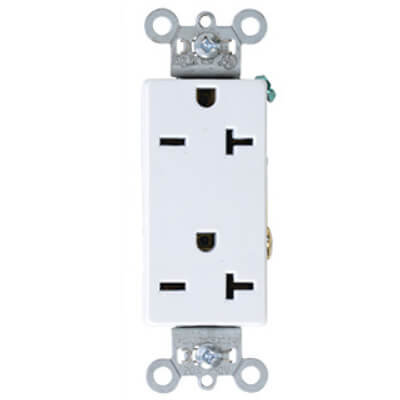

Heavy-Duty Decorator Spec Grade Receptacles w/ Back & Side Wire - 20A White (250V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$27.84 each
Out of Stock
Get it Tue, Oct 17 - Tue, Oct 24
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
250, 20 Amps
Description
–
Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.
Heavy-Duty Decorator Spec Grade Receptacles w/ Back & Side Wire - 20A White (250V)
Product Features
Heavy-Duty Decorator Spec Grade Receptacles w/ Back & Side Wire - 20A White (250V)
Product Features
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- Terminal compartments isolated from each other for positive conductor containment.
- Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
- All devices fit standard #26 opening wall plate.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- Color: White
- Country Of Origin: Mexico
- Product Line: Pass & Seymour
- Application Sector: Commercial
- Standard: UL498, cUL CSA
- Number of Poles: Double Pole
- Voltage: 250 V
- Connection: Back and side wire
- Dielectric Strength: Withstands 2000V minimum
- Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- Wire Size: #14 - #10
- Number of Wires: 3
- Environmental Conditions: Flammability: UL94 V2
Specs
–
| Color: | White |
|---|---|
| Application: | Commercial |
| Amperage: | 250 20 |
| Poles: | 2 |
| Wiring: | 3 Wire |
