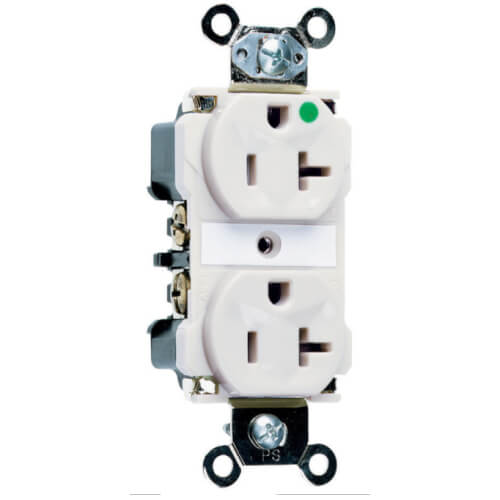

Extra Heavy-Duty Hospital Grade Receptacles w/ Back & Side Wire - 20A White (125V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$36.81 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
20 Amps
125v
Hospital
Description
–
Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.
Extra Heavy-Duty Hospital Grade Receptacles w/ Back & Side Wire - 20A White (125V)
Product Features
Extra Heavy-Duty Hospital Grade Receptacles w/ Back & Side Wire - 20A White (125V)
Product Features
- One-piece nickel-plated brass mounting strap with integral ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Two drive screws anchor strap to back body and face.
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and back body.
- Oversized #10 deep tri-drive head brass terminal and ground screws.
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
- Line terminals accept #14 - #10 AWG stranded or solid copper-clad conductors.
- Auto-ground clip assures positive ground.
- Illuminated version features exclusive LED lamp with solder connection for long durable life (10-12 years).
- Color: White
- Country Of Origin: Mexico
- Product Line: Pass & Seymour
- Application Sector: Commercial
- Standard: cULus UL498, CSA C22.2 No. 42
- Number of Poles: Double Pole
- Voltage: 125 V
- Connection: Back and side wire
- Dielectric Strength: Withstands 2000V minimum
- Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- Wire Size: #14 - #10
- Number of Wires: 3
- Environmental Conditions: Flammability: UL94 V2 and UL94-5 VA
Specs
–
| Country of Origin: | Mexico |
|---|---|
| Color: | White |
| Application: | Industrial |
| Amperage: | 20 |
| Voltage: | 125v |
| Poles: | 2 |
| Wiring: | 3 Wire |
| Wire Size: | 10-14 |
| Grade: | Hospital |
