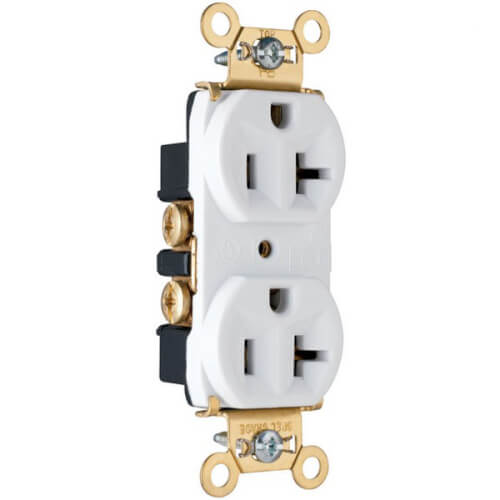

Heavy-Duty Spec Grade Duplex Receptacle, 20A, 2 Pole, Back & Side Wire, NEMA 5-20R - White (125V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$34.90 each
Backorder
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
125v
Commercial
20 Amps
White
Description
–
Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.
Heavy-Duty Spec Grade Duplex Receptacle, 20A, 2 Pole, Back & Side Wire, NEMA 5-20R - White (125V)
Product Features
Heavy-Duty Spec Grade Duplex Receptacle, 20A, 2 Pole, Back & Side Wire, NEMA 5-20R - White (125V)
Product Features
- Heavy-duty, brass strap for added strength and ground conductivity.
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- High strength nylon face.
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
- Eight back wire holes.
- Auto-ground clip assures positive ground.
Specs
–
| Voltage: | 125v |
|---|---|
| Poles: | 2 |
| Grade: | Commercial |
| NEMA Rating: | 5-20R |
| Amperage: | 20 |
| AWG: | 14-10 |
| Color: | White |
