Description

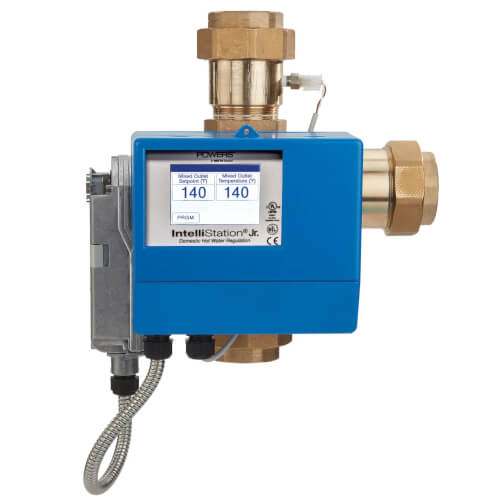

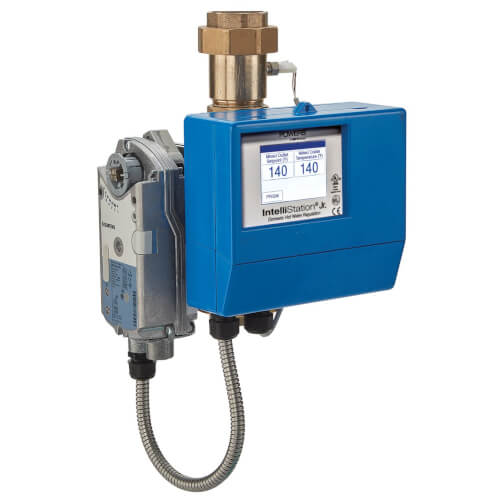

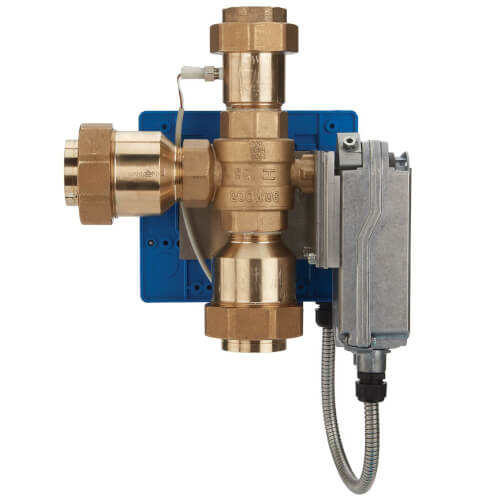

The IntelliStation Jr. is the smart mixing valve that keeps you covered and connected. Password protected and configurable on-site, IntelliStation Jr. is easy to install and does not require factory pre-programming, a laptop, or special software to download for commissioning or when making adjustments to the valve.

Features:
  • Programmable set point range 60°F to 180°F
  • Control water temperature +/- 2°F in accordance with ASSE 1017
  • Lead Free* construction complies with lead free* installation requirement
  • 3.5" full-color, user-selectable touch screen display
  • High temperature Sanitization mode addresses waterborne bacteria
  • In case of power failure, flows full cold for enhanced safety
  • Manual override in the event of prolonged power loss
  • Configurable on location. Does not require factory pre-programming, lap top or special software
  • Control module supports Building Automation System (BAS) communication with BACnet MSTP and Modbus protocols. BAS is native to the unit and does not require a separate module or additional cost
  • Mixed outlet temperature can be adjusted/monitored at the valve or remotely by Building Automation System (BAS)
  • Prevents overnight temperature creep, and automatically balances hot water distribution during low to no demand period.
  • Includes single operating sensor for a mixed outlet temperature reading
  • Pass code protected for security, user specified
  • Programmable hi/lo temperature alerts
  • Programmable schedule for setback of temperature when the building is unoccupied
  • Real time clock for date & time stamping of error messages
  • Wi-Fi enabled for software upgrade
  • Listed /compliance to ASSE1017, cUPC, NSF, CSA 24/UL873, Bacnet Testing Laboratories (BTL) and EC
*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
Read more
Manuals (3)
Specs
Type:
Mixing Valve
Inlet Size:
3/4"
Outlet Size:
3/4"
Max Temp (F):
180°F
Min Temp (F):
60°F
Min Flow (GPM):
0.5
Max Pressure (PSI):
200
Lead Free:
Yes
Features:
Wifi
Standards Met:
ASSE 1017
CUPC
×
