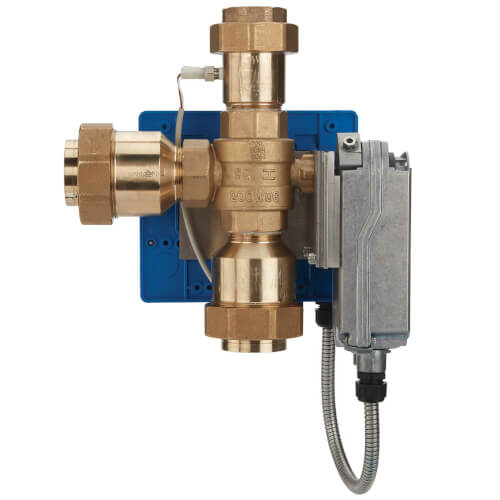

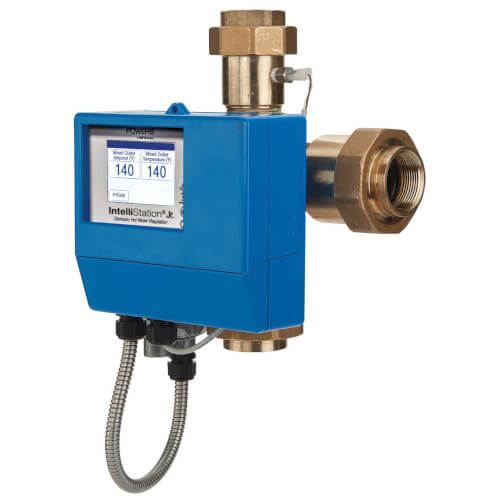

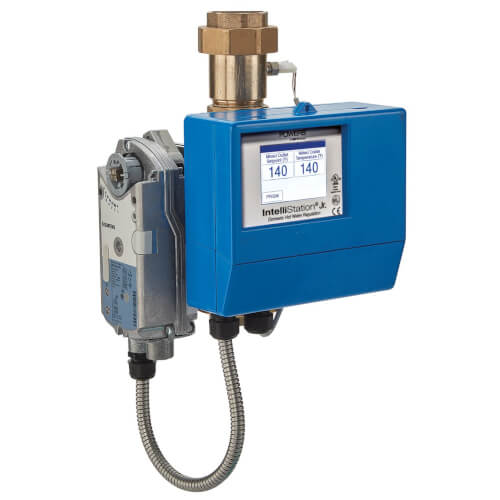

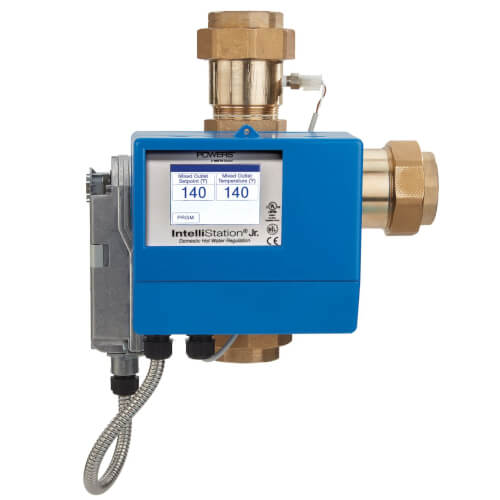

1" Inlet IntelliStation Jr. Digital Water Mixing Valve

The IntelliStation Jr. is the smart mixing valve that keeps you covered and connected. Password protected and configurable on-site, IntelliStation Jr. is easy to install and does not require factory pre-programming, a laptop, or special software to download for commissioning or when making adjustments to the valve.

Features:

• Programmable set point range 60°F to 180°F
• Control water temperature +/- 2°F in accordance with ASSE 1017
• Lead Free* construction complies with lead free* installation requirement
• 3.5" full-color, user-selectable touch screen display
• High temperature Sanitization mode addresses waterborne bacteria
• In case of power failure, flows full cold for enhanced safety
• Manual override in the event of prolonged power loss
• Configurable on location. Does not require factory pre-programming, lap top or special software
• Control module supports Building Automation System (BAS) communication with BACnet MSTP and Modbus protocols. BAS is native to the unit and does not require a separate module or additional cost
• Mixed outlet temperature can be adjusted/monitored at the valve or remotely by Building Automation System (BAS)
• Prevents overnight temperature creep, and automatically balances hot water distribution during low to no demand period.
• Includes single operating sensor for a mixed outlet temperature reading
• Pass code protected for security, user specified
• Programmable hi/lo temperature alerts
• Programmable schedule for setback of temperature when the building is unoccupied
• Real time clock for date & time stamping of error messages
• Wi-Fi enabled for software upgrade
• Listed /compliance to ASSE1017, cUPC, NSF, CSA 24/UL873, Bacnet Testing Laboratories (BTL) and EC

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
