LFIS200VL has been discontinued
Discontinued December 12, 2025
This product was discontinued by the manufacturer.
MANUALS (4)
Product Highlights
–
180°F Max Temp
60°F Min Temp
2"
2"
200 MAX PSI
Yes
Description
–

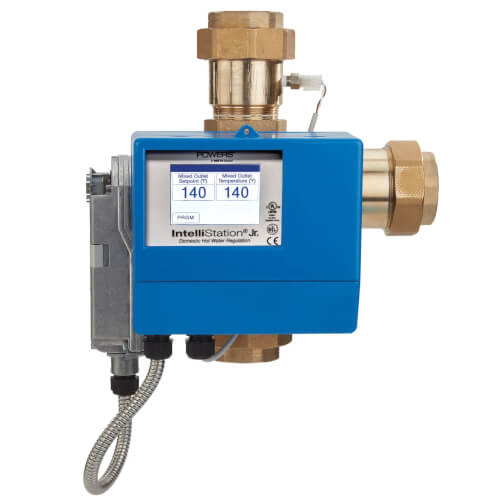

The IntelliStation Jr. is the smart mixing valve that keeps you covered and connected. Password protected and configurable on-site, IntelliStation Jr. is easy to install and does not require factory pre-programming, a laptop, or special software to download for commissioning or when making adjustments to the valve. IntelliStation Jr. controls outlet temperature to +/- 2oF of set point in compliance with ASSE 1017. Connectivity to the BAS is standard in both BACnet and Modbus protocols. Temperature setback feature contributes to energy efficiency and savings.
Features:
Features:
- Now available in 1.5” and 2.0” sizes
- Programmable set point range 60°F to 180°F
- Control water temperature +/- 2°F in accordance with ASSE 1017
- Lead Free* construction complies with lead free* installation requirement
- 3.5" full-color, user-selectable touch screen display
- High temperature Sanitization mode addresses waterborne bacteria
- In case of power failure, flows full cold for enhanced safety
- Manual override in the event of prolonged power loss
- Configurable on location. Does not require factory pre-programming, lap top or special software
- Control module supports Building Automation System (BAS) communication with BACnet MSTP and Modbus protocols. BAS is native to the unit and does not require a separate module or additional cost
- Mixed outlet temperature can be adjusted/monitored at the valve or remotely by Building Automation System (BAS)
- Prevents overnight temperature creep, and automatically balances hot water distribution during low to no demand period.
- Includes single operating sensor for a mixed outlet temperature reading
- Pass code protected for security, user specified
- Programmable hi/lo temperature alerts
- Programmable schedule for setback of temperature when the building is unoccupied
- Real time clock for date & time stamping of error messages
- Wi-Fi enabled for software upgrade
- Listed /compliance to ASSE1017, cUPC, NSF, CSA 24/UL873, Bacnet Testing Laboratories (BTL) and EC
Specs
–
| Type: | Mixing Valve |
|---|---|
| Inlet Size: | 2" |
| Outlet Size: | 2" |
| Max Temp (F): | 180°F |
| Min Temp (F): | 60°F |
| Min Flow (GPM): | 0.5 |
| Max Pressure (PSI): | 200 |
| Features: | Wifi |
| Lead Free: | Yes |
| Standards Met: | CUPC ASSE 1017 |
