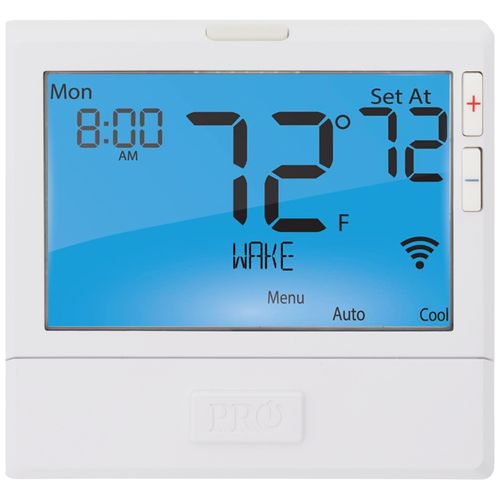

Pro1 IAQ T855iSH Universal Digital Thermostat, Wi-Fi Enabled (5H/3C)
The Pro1 IAQ T855iSH is a hardwired universal digital thermostat with Wi-Fi connectivity designed for multi-stage heat pump systems with 5 heating stages and 3 cooling stages. Operating on 24V power, the unit features an 8 square inch display with blue backlighting and supports up to 16 remote sensors for precise temperature control across multiple zones. The thermostat includes an easy access battery compartment, auto changeover capability, and both humidity and dehumidification control.
Key Features & Benefits
Compatibility & Requirements
The T855iSH requires 24V power and a neutral wire connection. The thermostat is designed for multi-stage heat pump systems rated for 5 heating stages and 3 cooling stages. While the unit includes a compartment that resembles a battery holder, it does not operate on batteries and must be hardwired to function. The thermostat accommodates the optional R250S accessory for dual fuel applications and R251S indoor remote sensors. Installation should be performed by a qualified HVAC technician familiar with multi-stage heat pump wiring and low-voltage thermostat connections.
Installation & Care
Mount the thermostat horizontally on a junction box or directly to the wall using the provided hardware. Connect all wiring according to the labeled terminals, ensuring a neutral wire is properly installed. Configure the system parameters through the setup menu to match the specific HVAC equipment and staging requirements. Program occupancy periods, setpoint limits, and keypad lockout settings as needed. Pair any remote sensors following the synchronization procedure. Keep the display clean with a soft, dry cloth. Avoid exposing the unit to moisture beyond the 90% non-condensing humidity rating. Check wiring connections annually and confirm all remote sensors remain properly paired.
What's Included
Warranty & Support
The Pro1 IAQ T855iSH is covered by a 5 year manufacturer warranty.
Frequently Asked Questions
Q: Does the T855iSH operate on batteries or require hardwired power?
A: The thermostat requires hardwired 24V power with a neutral wire connection and does not run on batteries, despite having a compartment that resembles a battery holder.
Q: How many remote sensors can the T855iSH support?
A: The thermostat can accommodate up to 16 remote sensors for expanded temperature monitoring across multiple zones.
| Product Type: | Thermostat |
|---|---|
| User Interface: | Push Button |
| Mount: | Horizontal Junction Box |
| Power Method: | Hardwired |
| Programmability: | Non-Programmable 7 Day |
| Features: | Auto Changeover |
| Application: | Multi-Stage (Heat/Cool) |
| Stages: | 5 Heat/3 Cool (Heat Pump) |
| Display Range: | 41°F to 95°F |
| Control Temp Range (F): | 44°F to 90°F |
| Operating Humidity: | 90% non-condensing |
| Options: | Large Display |
| Voltage: | 24V |
| Warranty: | 5 Year |
